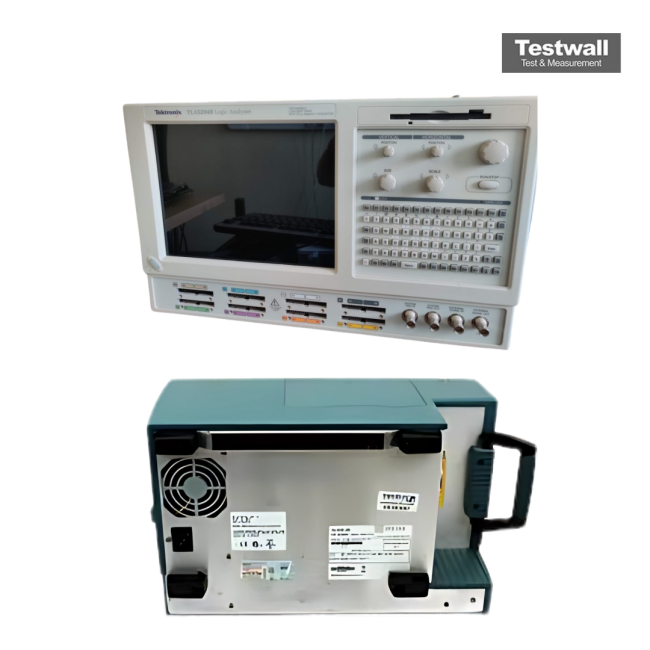

Tektronix TLA5204B
| Attribute | Value |
|---|---|
| Number of Channels | 204 Channels |
| Maximum Sample Rate | 2 GHz Timing (500 ps resolution) |
| State Clock Speed | Up to 450 MHz |
| Memory Depth | Up to 128 Mb per channel (with optional memory upgrade) |
| Threshold Voltage Range | -6.0 V to +6.0 V, programmable in 50 mV increments |
| Input Voltage Range | -6.0 V to +6.0 V |
| Minimum Detectable Pulse Width | 1.5 ns |
| Form Factor | Portable/Benchtop Mainframe |
| Supported Logic Families | TTL, CMOS, LVTTL, LVCMOS, LVDS, ECL, PECL, and user-defined |
| Operating System | Windows XP Embedded |
| Model | TLA5204B |
|---|
The Tektronix TLA5204B is a high-channel-count logic analysis module, offering 136 total channels including 4 clock and 132 data lines, with an exceptional 125 ps resolution architecture. It features 32 Mb of timing memory to enable deep signal capture and combines seamlessly with analog systems using iView™ technology for thorough signal integrity analysis.
Ideal for high-speed digital systems, it includes advanced triggering options and precision state/timing capture, ensuring reliable debug performance and broad usage across complex designs.
Testwall can supply the used Tektronix TLA5204B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA5204B.
