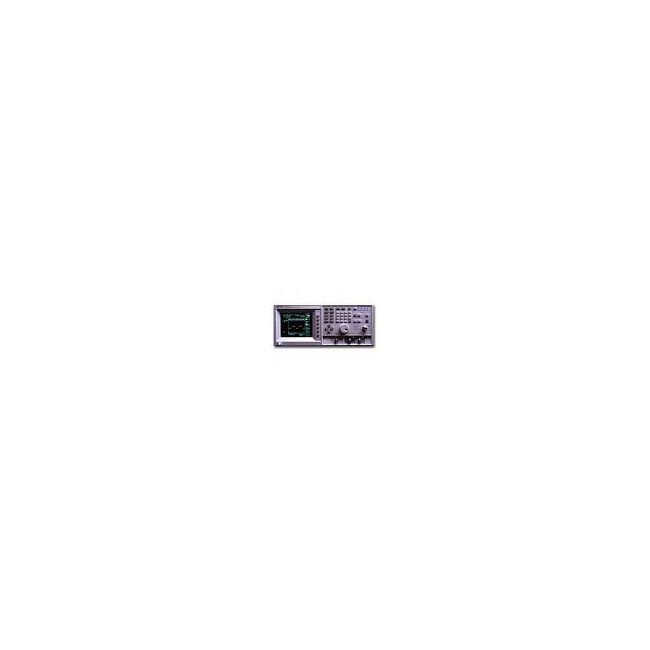

Keysight (Agilent) 5373A
| Attribute | Value |
|---|---|
| Frequency Range | DC to 3 GHz |
| Input Channels | 2 Channels |
| Time Interval Resolution | 1 ps |
| Single-Shot Time Interval Resolution | 50 ps RMS |
| Frequency Resolution | 12 digits per second |
| Input Impedance | 50 Ohms |
| Voltage Range | -2.5 V to +2.5 V |
| Trigger Level Range | -2.5 V to +2.5 V |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz |
| Interface | GPIB (IEEE-488), RS-232 |
Keysight (Agilent) 5373A Options:
- 5373A - 020 - FastPort Outputs: Three 40-pin connectors provide unprocessed data directly from count hardware. 16 bits of data and 1 strobe for each connector.
| Model | 5373A |
|---|
The Keysight (Agilent) 5373A Modulation Domain Pulse Analyzer delivers high-performance analysis of pulsed RF signals up to 500 MHz, expandable to 2 GHz with optional channels. It features 200 ps single-shot resolution, 10 digits/sec for frequency, and 2 ps for averaged measurements, ideal for radar and EW signal characterization.
Capable of advanced measurements like jitter, PRI, peak envelope power, and more, the 5373A supports agile carriers, staggered PRI, chirp, and phase-coded signals with built-in math and statistical tools.
Testwall can supply the used Keysight (Agilent) 5373A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 5373A.
