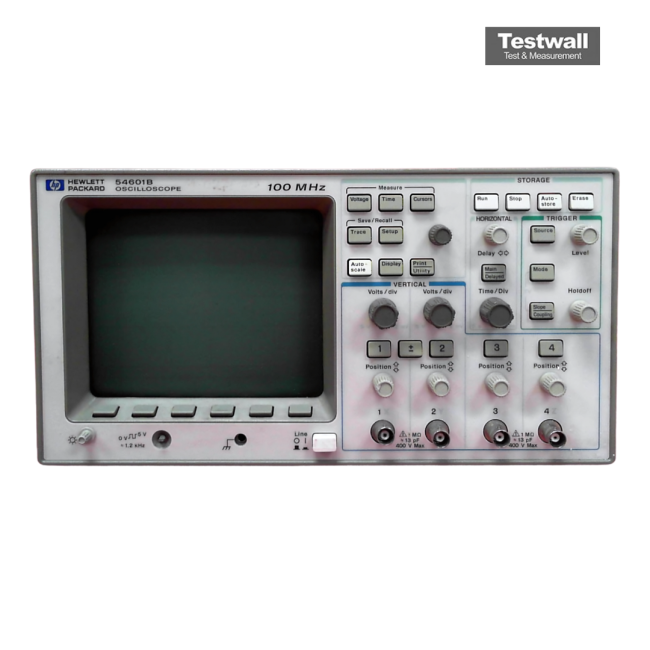

Keysight (Agilent) 54601
60 MHz Bandwidth
2 Number of Channels
20 MSa/s Sample Rate
4 Kpoints per channel Memory Depth
2 mV/div to 5 V/div Vertical Sensitivity
| Attribute | Value |
|---|---|
| Bandwidth | 60 MHz |
| Number of Channels | 2 |
| Sample Rate | 20 MSa/s |
| Memory Depth | 4 Kpoints per channel |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 5 s/div |
| Input Impedance | 1 MΩ ± 2% in parallel with 13 pF ± 3 pF |
| Display Type | Monochrome CRT |
| Trigger Types | Edge, Pattern, TV, Duration, Auto, Normal, Single |
| Power Requirements | 100–240 VAC, 50/60 Hz, 80 W maximum |
Keysight Technologies 54601 Options:
- 54601 - 003 - Shielding Option for use in severe environments or with sensitive devices under test – shields both ways (in and out): RS-03 Magnetic interface shielding added to CRT, and RE-02 display shield added to CRT to reduce radiated interference
- 54601 - 1CM - Rackmount kit (same as 1186A)
- 54601 - A6J - ANSI/NSCL Z540 calibration with test data (replaces 1BP)
- 54601 - R-50C-011-3 - 3-years of return-to-Agilent inclusive calibration service
- 54601 - R-50C-013-3 - 3-years of return-to-Agilent inclusive plus calibration service
- 54601 - R-50C-011-5 - 5-years of return-to-Agilent inclusive calibration service
- 54601 - R-50C-013-5 - 5-years of return-to-Agilent inclusive plus calibration service
- 54601 - R-51B-001-3C - 1-year return-to-Agilent warranty, extended to 3-years
- 54601 - R-51B-001-5C - 1-year return-to-Agilent warranty, extended to 5-years
- 54601 - ABA - Manual option: English
- 54601 - ABJ - Manual option: Japanese
- 54601 - AB2 - Manual option: Simplified Chinese
| Model | 54601 |
|---|
The Keysight (Agilent) 54601 is a 4-channel analog oscilloscope with 100 MHz bandwidth, featuring vertical sensitivity from 2 mV/div to 5 V/div and a sweep speed range of 5 s/div to 2 ns/div. It supports edge, pulse, and video triggering, with input impedance of 1 MΩ and max input voltage of 400 V. It includes a high-refresh CRT display and analog-style controls.
Ideal for circuit debugging, educational use, and R&D waveform monitoring, it ensures reliable multi-signal analysis and intuitive operation.
Testwall can supply the used Keysight (Agilent) 54601, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54601.
