Keysight (Agilent) DSOX4104A
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts standard (up to 16 Mpts with option) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 20 s/div |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 3 pF, or 50 Ω ± 1.5% |
Keysight (Agilent) DSOX4104A Options:
- DSOX4104A - DSOX4EMBD - Embedded serial triggering and analysis (I²C, SPI)
- DSOX4104A - DSOX4COMP - Computer serial triggering and analysis (RS232/UART)
- DSOX4104A - DSOX4USBFL - USB 2.0 Full/Low Speed serial decode and triggering
- DSOX4104A - DSOX4USBH - USB 2.0 Hi-Speed serial decode and triggering
- DSOX4104A - DSOX4USBSQ - USB 2.0 signal quality test
- DSOX4104A - DSOX4AUTO - Automotive serial triggering and analysis (CAN/CAN-dbc/LIN)
- DSOX4104A - DSOX4FLEX - FlexRay serial triggering and analysis
- DSOX4104A - DSOX4AUDIO - Audio serial triggering and analysis (I²S)
- DSOX4104A - DSOX4AERO - Aerospace and defence serial triggering and decode (MIL-STD 1553 and ARINC 429)
- DSOX4104A - DSOX4WAVEGEN2 - Dual-channel WaveGen 20 MHz arbitrary/function generator
- DSOX4104A - DSOXDVM - 3-digit voltmeter (DVM)
- DSOX4104A - DSOX4PWR - Power analysis application
- DSOX4104A - DSOX4MASK - Mask Limit Testing
- DSOX4104A - DSOX4VID - Enhanced video/TV application package
- DSOX4104A - DSOX4FPGAX - FPGA dynamic probe option for Xilinx
- DSOX4104A - DSOXEDK - Education and training kit
- DSOX4104A - DSOXPERFMSO - 4000 X-Series oscilloscope MSO upgrade
- DSOX4104A - DSOX4B1T154U - 1 GHz to 1.5 GHz bandwidth upgrade, 4 ch (Service center)
| Model | DSOX4104A |
|---|

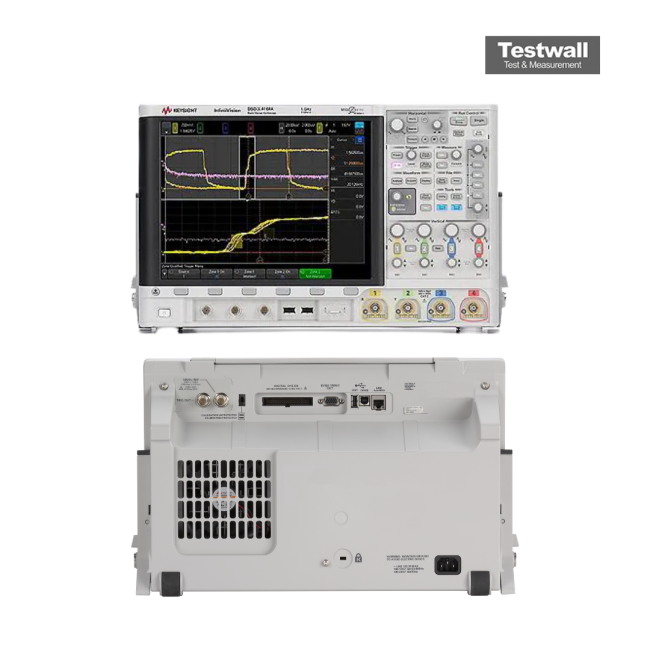

The Keysight (Agilent) DSOX4104A Oscilloscope offers a 1 GHz bandwidth, four analog input channels, and a 12.1-inch capacitive touch screen. It features MegaZoom IV smart memory, innovative InfiniiScan Zone triggering, and a waveform update rate exceeding 1 million per second. With integrated functionality of an oscilloscope, MSO, serial protocol analyzer, WaveGen, and DVM, it's fully upgradable and performance-optimized.
Ideal for high-speed signal analysis, digital protocol decoding, and mixed-signal debugging with 5 GSa/s sample rate and segmented memory for efficient data capture and review.
Testwall can supply the used Keysight (Agilent) DSOX4104A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX4104A.
