Keysight (Agilent)
Keysight (Agilent) 54610B
2 Channel 500MHz 20MS/s Digital Storage Oscilloscope
500 MHz Bandwidth
2 Number of Channels
20 MSa/s (real-time), 1 GSa/s (repetitive) Sample Rate
32,768 points per channel Memory Depth
2 mV/div to 5 V/div Vertical Sensitivity
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 2 |
| Sample Rate | 20 MSa/s (real-time), 1 GSa/s (repetitive) |
| Memory Depth | 32,768 points per channel |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 5 s/div |
| Vertical Resolution | 8 bits |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF |
| Display | 6-inch diagonal raster-scan CRT |
| Power Requirements | 100–240 VAC, 50/60 Hz, 80 W maximum |
Keysight Technologies 54610B Options:
- 54610B - Opt. 001 - RS-03 Magnetic interface shielding added to CRT
- 54610B - Opt. 002 - RE-02 Display Shield added to CRT (to reduce radiated interface)
- 54610B - Opt. 0B0 - Delete Manual
- 54610B - Opt. W50 - Additional 2-year warranty
- 54610B - Opt. 1BP - Mil Std 45662A cal with test data
- 54610B - Opt. 005 - Enhanced TV/Video measurements and triggering
- 54610B - Opt. 090 - Delete probes
- 54610B - Opt. 101 - 10098A Accessory pouch & front panel cover
- 54610B - Opt. 103 - 54654A Operator's training kit
- 54610B - Opt. 104 - 1185A Carrying case
- 54610B - Opt. 1CM - 5062-7345 Rack mount kit
- 54610B - Opt. 106 - 34810B BenchLink scope (v1.4 or greater) for Windows
| Model | 54610B |
|---|

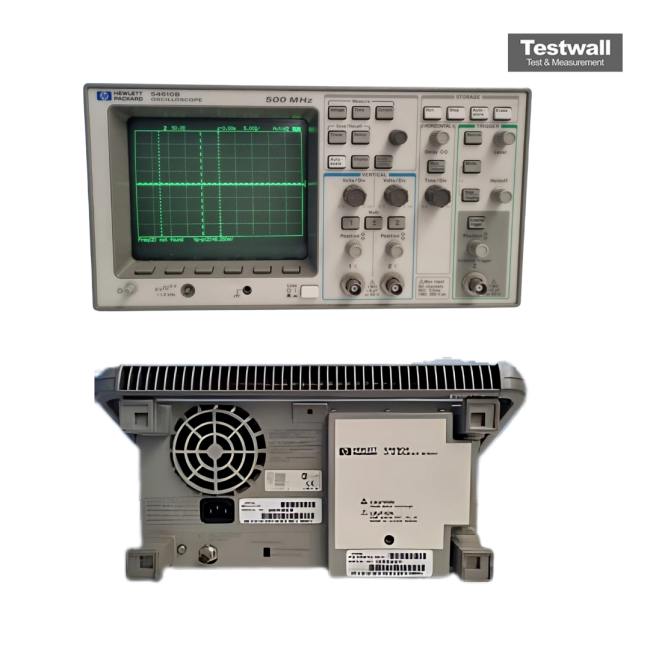

The Keysight (Agilent) 54610B is an affordable 2-channel 500 MHz digital oscilloscope offering performance typically found in higher-end models. It provides 500 MHz bandwidth, two input channels plus a viewable trigger, and sweep speeds ranging from 5 s/div to 1 ns/div. With a screen update rate of up to 1.5 million points per second, it ensures sharp waveform rendering and responsive measurement. Supported options include EMI shielding (001, 002), enhanced video trigger (005), accessory pouch (101), and rackmount kit (1CM), allowing flexible setup.
Ideal for engineers requiring high-bandwidth analysis without the cost burden, the 54610B delivers reliable diagnostics across analog, digital, and mixed-signal domains with precision and speed.
Testwall can supply the used Keysight (Agilent) 54610B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54610B.
