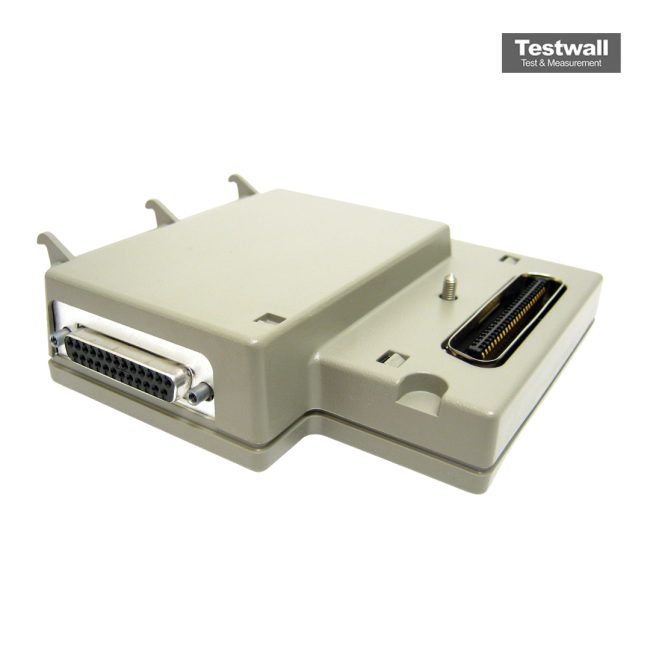

Keysight (Agilent) 54652B
| Attribute | Value |
|---|---|
| Interface Type | RS-232 and Parallel (Centronics) Interface Module |
| Compatible Oscilloscope Series | Keysight/Agilent 54600 Series Oscilloscopes |
| RS-232 Baud Rate | Up to 19,200 Baud |
| Parallel Interface Standard | Centronics-Compatible Parallel Port |
| Module Form Factor | Plug-In Interface Module for Rear Panel Installation |
| RS-232 Connector Type | DB-9 Female Connector |
| Parallel Port Connector Type | 36-Pin Centronics Female Connector |
| Primary Function | Enables Remote Control and Hard Copy Printing via RS-232 and Parallel Interfaces |
| Programming Compatibility | Supports GPIB-Like Remote Programming Commands via RS-232 |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
Keysight Technologies 54652B Options:
- 54652B - 003 - Shielding Option for use in severe environments or with sensitive devices under test – shields both ways (in and out): RS-03 Magnetic interface shielding added to CRT, and RE-02 display shield added to CRT to reduce radiated interference
- 54652B - 1CM - Rackmount kit (same as 1186A)
- 54652B - A6J - ANSI/NSCL Z540 calibration with test data (replaces 1BP)
- 54652B - R-50C-011-3 - 3-years of return-to-Agilent inclusive calibration service
- 54652B - R-50C-013-3 - 3-years of return-to-Agilent inclusive plus calibration service
- 54652B - R-50C-011-5 - 5-years of return-to-Agilent inclusive calibration service
- 54652B - R-50C-013-5 - 5-years of return-to-Agilent inclusive plus calibration service
- 54652B - R-51B-001-3C - 1-year return-to-Agilent warranty, extended to 3-years
- 54652B - R-51B-001-5C - 1-year return-to-Agilent warranty, extended to 5-years
- 54652B - ABA - Manual Option: English
- 54652B - ABJ - Manual Option: Japanese
- 54652B - AB2 - Manual Option: Simplified Chinese
| Model | 54652B |
|---|
The Keysight (Agilent) 54652B is a versatile RS-232 and parallel interface module designed to enhance the functionality of Agilent 54600-series oscilloscopes. It enables the addition of RS-232 interface and a parallel printer port, integrates programming capability, and allows printer connectivity. Moreover, it transforms the two-trace memory from volatile to non-volatile, ensuring data retention and reliability.
This module is ideal for users needing flexible connectivity options, efficient data storage, and printing functionality from their Agilent 54600-series scopes.
Testwall can supply the used Keysight (Agilent) 54652B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54652B.
