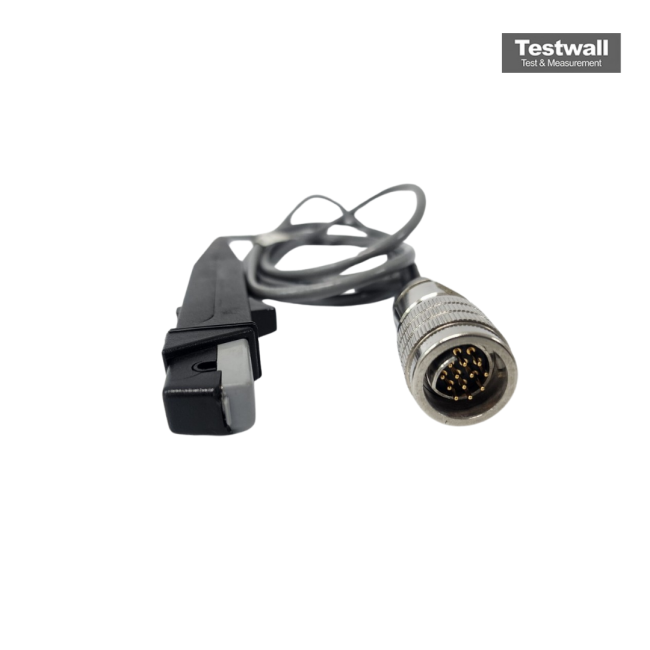

Tektronix A6312
| Attribute | Value |
|---|---|
| Current Range | Up to 30 A RMS |
| Peak Current | 50 A peak |
| Frequency Bandwidth | DC to 100 MHz |
| Sensitivity | 10 mV/A |
| Maximum Conductor Diameter | 5 mm |
| Output Connector | BNC |
| Power Requirement | Requires TCPA300 or TCPA400 amplifier |
| Probe Type | AC/DC Current Probe |
| Rise Time | 3.5 ns |
| Operating Temperature | 0°C to +50°C |
Tektronix A6312 100MHz 20A Current Probe Options:
- A6312 - 01 - Adds A6303 Probe
- A6312 - 03 - Substitutes A6303 Probe For A6302 Probe
- A6312 - 05 - Substitutes A6312 Probe For A6302 Probe
- A6312 - 09 - Deletes A6302 Probe
| Model | A6312 |
|---|
The Tektronix A6312 100MHz 20A Current Probe is engineered for precise AC and DC current measurements up to 20A with a bandwidth of 100MHz. Designed for use with compatible oscilloscopes, it offers exceptional sensitivity and accuracy, ensuring detailed waveform analysis. The probe's lightweight design and flexible cable enable easy positioning in complex test environments.
Ideal for power electronics, motor drives, and switching power supply applications, this probe provides reliable performance in demanding test conditions. It ensures stable signal integrity across the entire frequency range.
Testwall can supply the used Tektronix A6312 100MHz 20A Current Probe, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix A6312 100MHz 20A Current Probe.
