Keysight (Agilent) 54659B
| Attribute | Value |
|---|---|
| Module Type | Measurement/Storage Module |
| Compatible Oscilloscope Series | Keysight/Agilent 5465x Series Oscilloscopes |
| Storage Capacity | Floppy Disk Drive (3.5-inch) and RS-232/Parallel Interface |
| Interface | RS-232 and Parallel (Centronics) Printer Port |
| Floppy Drive Format | 3.5-inch, 1.44 MB DOS-compatible floppy disk |
| RS-232 Baud Rate | Up to 19,200 baud |
| Power Supply | Powered directly through the oscilloscope module slot |
| Waveform Storage | Supports saving and recalling waveform data and oscilloscope setups |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Form Factor | Plug-in module for 54650-series oscilloscope rear module slot |
Keysight Technologies 54659B Options:
- 54659B - 003 - Shielding Option for use in severe environments or with sensitive devices under test – shields both ways (in and out): RS-03 Magnetic interface shielding added to CRT, and RE-02 display shield added to CRT to reduce radiated interference
- 54659B - 1CM - Rackmount kit (same as 1186A)
- 54659B - A6J - ANSI/NSCL Z540 calibration with test data (replaces 1BP)
- 54659B - R-50C-011-3 - 3-years of return-to-Agilent inclusive calibration service
- 54659B - R-50C-013-3 - 3-years of return-to-Agilent inclusive plus calibration service
- 54659B - R-50C-011-5 - 5-years of return-to-Agilent inclusive calibration service
- 54659B - R-50C-013-5 - 5-years of return-to-Agilent inclusive plus calibration service
- 54659B - R-51B-001-3C - 1-year return-to-Agilent warranty, extended to 3-years
- 54659B - R-51B-001-5C - 1-year return-to-Agilent warranty, extended to 5-years
- 54659B - ABA - Manual Option: English
- 54659B - ABJ - Manual Option: Japanese
- 54659B - AB2 - Manual Option: Simplified Chinese
| Model | 54659B |
|---|

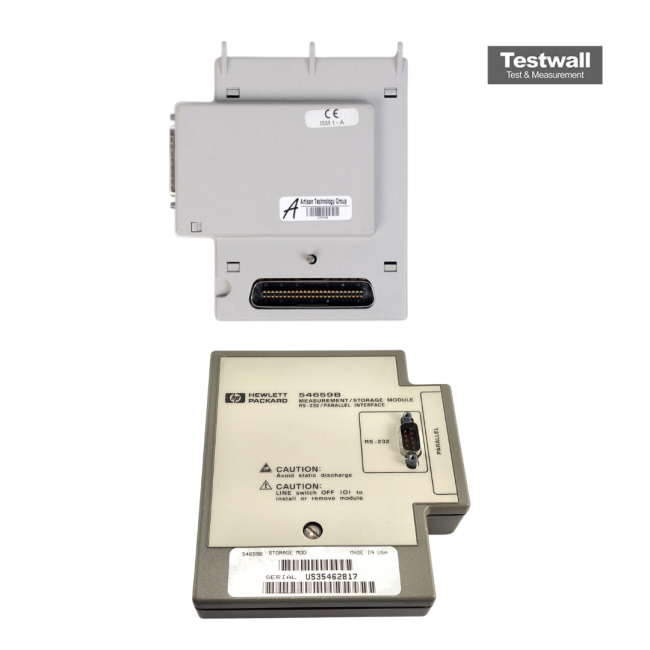

The Keysight (Agilent) 54659B Measurement Storage Module adds RS-232 & parallel interface capabilities to Agilent 54600B-series scopes and the 54645A/D models. It also supports I/O with the 54620A/C logic analyzers. With FFT functionality, it allows detailed signal analysis in the frequency domain.
This module provides remote programming, enables unattended waveform monitoring, and stores up to 100 nonvolatile waveforms. Ideal for enhanced data acquisition and analysis.
Testwall can supply the used Keysight (Agilent) 54659B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54659B.
