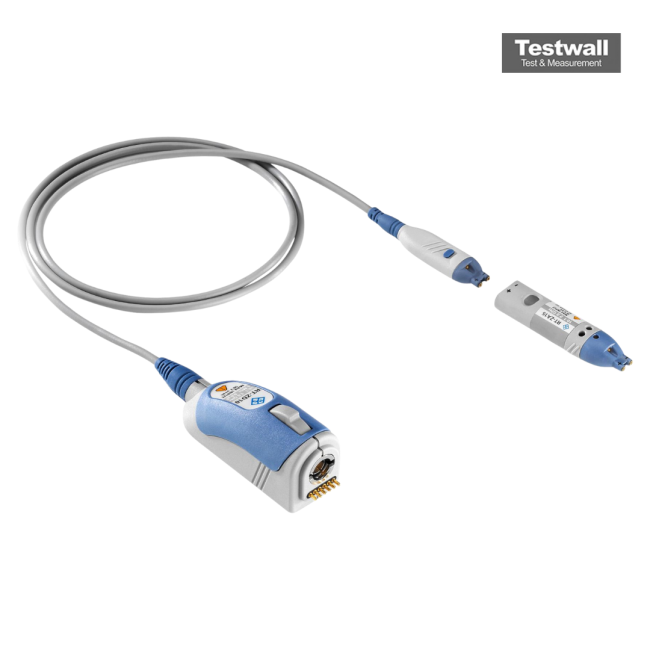

Rohde & Schwarz RT-ZD10
| Attribute | Value |
|---|---|
| Bandwidth | 10 MHz |
| Differential Voltage Range | ±15 V |
| Common Mode Voltage Range | ±15 V |
| Attenuation Ratio | 10:1 |
| Input Impedance | 1 MΩ / 8 pF (each input to ground) |
| CMRR (Common Mode Rejection Ratio) | ≥ 80 dB at 50 Hz |
| Rise Time | ≤ 35 ns |
| Output Connector | BNC |
| Operating Temperature Range | 0 °C to +50 °C |
| Compatible Oscilloscopes | Rohde & Schwarz RTx, HMO, and RTO series oscilloscopes |
| Model | RT-ZD10 |
|---|
The Rohde & Schwarz RT-ZD10 is an active differential probe offering a bandwidth of 1.0 GHz, designed specifically for precise measurements in challenging electrical environments. Featuring a high input impedance, low noise floor, and exceptional common-mode rejection ratio, it ensures accurate signal acquisition. Its compact, ergonomic design facilitates ease of handling and reduces measurement errors, while advanced shielding technology minimizes interference, maintaining signal integrity even in high-frequency scenarios.
This active differential probe is ideally suited for tasks involving high-speed digital circuits, power electronics, and RF designs, offering versatility in laboratories, field tests, and production lines.
Testwall can supply the used Rohde & Schwarz RT-ZD10, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz RT-ZD10.
