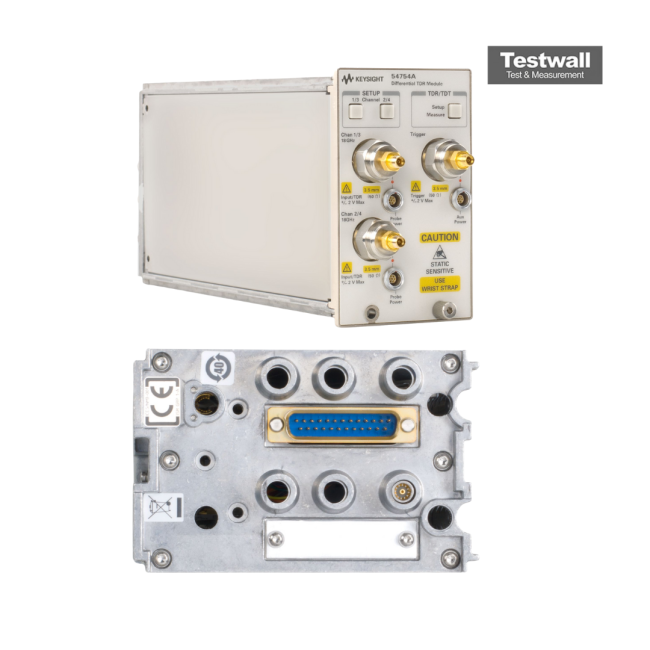

Keysight (Agilent) 54754A
| Attribute | Value |
|---|---|
| Bandwidth | 2.5 GHz |
| Module Type | Differential TDR/TDT Module |
| Number of Channels | 2 TDR Channels |
| Rise Time | 140 ps |
| Step Amplitude | 200 mV (typical) |
| Time Resolution | 1.0 ps |
| Impedance Range | 25 Ω to 75 Ω (typical) |
| Compatible Mainframe | Keysight 86100 Series Oscilloscopes |
| Connector Type | 2.92 mm (K-connector) |
| Operating Temperature | 0°C to 55°C |
| Model | 54754A |
|---|
The Keysight (Agilent) 54754A offers two 18 GHz channels with built-in TDR step generators, supporting differential, common mode, or independent operation. Each channel functions as a standard oscilloscope vertical system when step generators are disabled. It features 3.5 mm connectors, 0.25 mV rms noise (12.4 GHz BW), and supports S-parameters with mainframe FW rev. A.06.01+. Compatible with 54750A, 83480A, 86100A/B/C, and 86100D DCA mainframes.
Perfect for high-speed differential circuit probing, the 54754A integrates seamlessly with differential TDR probes and calibration kits, ensuring precision in TDR/TDT measurements.
Testwall can supply the used Keysight (Agilent) 54754A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54754A.
