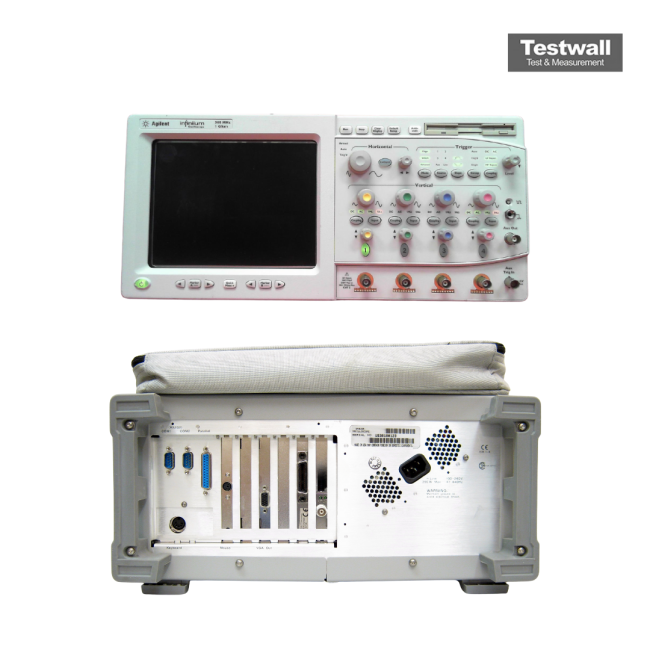

Keysight (Agilent) 54815A
4 Channel 500MHz 1GS/s Digitising Scope
1 GHz Bandwidth
4 Analog Channels Number of Channels
4 GSa/s (2 channels), 2 GSa/s (4 channels) Sample Rate
4 Mpts per channel Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 4 GSa/s (2 channels), 2 GSa/s (4 channels) |
| Memory Depth | 4 Mpts per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 500 ps/div to 20 s/div |
| Rise Time | 350 ps |
| Display | 8.4-inch Color LCD Display |
| Input Impedance | 50 Ω or 1 MΩ (with 13 pF) |
Keysight Technologies 54815A Options:
- 54815A - 090 - Delete standard probes (four 1160A probes for the 54815A/25A)
- 54815A - 001 - Additional standard probes (two 1160A probes for the 54810A/15A/20A/25A)
- 54815A - 002 - Add one 1162A 1:1 passive probe
- 54815A - 003 - Add one 1163A 10:1 500 Ω, low C passive probe
- 54815A - 008 - Add one 1153A 200 MHz differential probe
- 54815A - 009 - Add one 1154A 500 MHz differential probe
- 54815A - 010 - Add one 1159A 1 GHz differential probe
- 54815A - 012 - Add one 1156A 1.5 GHz active probe
- 54815A - 013 - Add one 1157A 2.5 GHz active probe (for 54835/45/46A)
- 54815A - 014 - Add one 1158A 4 GHz active probe (for 54845/46A)
- 54815A - 016 - Add one EZ-probe positioner (E2654A)
- 54815A - A6J - ANSI Z540 compliant calibration
- 54815A - 1CM - Add one rackmount kit (E2609A)
- 54815A - UL5 - Add one touchpad pointing device (E2612A)
- 54815A - UL9 - Add one cordless trackball (E2647A)
- 54815A - ULA - Add one cordless keyboard and mouse (E2648A)
- 54815A - W50 - Five-year, customer-return, repair coverage (additional 2 years)
- 54815A - 100 - Communication mask test kit for new Infiniium oscilloscopes
- 54815A - 200 - VoiceControl for new Infiniium oscilloscopes
- 54815A - B30 - USB test option for new Infiniium oscilloscopes
| Model | 54815A |
|---|
The Keysight (Agilent) 54815A Infiniium Oscilloscope offers 4 channels with 500 MHz bandwidth and 1 GSa/s simultaneous sampling on all channels, making it ideal for high-speed, multi-signal debugging and design validation. It features a Windows-based interface with color-grade persistence, auto-mask testing, and real-time histogram displays for detailed waveform analysis. Advanced triggering capabilities—such as glitch, pattern, state, setup/hold, and video—enable pinpoint accuracy in signal capture.
Engineered for integration and efficiency, the 54815A includes fast GPIB throughput, FFT math, delayed sweep, measurement statistics, and a range of interfaces including RS-232, LAN, and Centronics for streamlined data handling.
Testwall can supply the used Keysight (Agilent) 54815A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54815A.
