Tektronix TDS520A
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Bandwidth | 500 MHz |
| Sample Rate | 500 MS/s (single channel), 250 MS/s (two channels) |
| Record Length | 50,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | Color LCD |
| Connectivity / Interface | GPIB, RS-232, Centronics (parallel printer port) |
Tektronix TDS520A Options:
Options available for the Tektronix TDS300 / 400 / 500 / 600 / 700 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS520A - 05 - Video trigger
- TDS520A - 13 - RS-232 and Centronics interfaces
- TDS520A - 1F - Built-in floppy disk drive
- TDS520A - 1M - Long record length
- TDS520A - 2F - Advanced DSP math
- TDS520A - 1R - Rack mount configuration
- TDS520A - 1K - Instrument cart

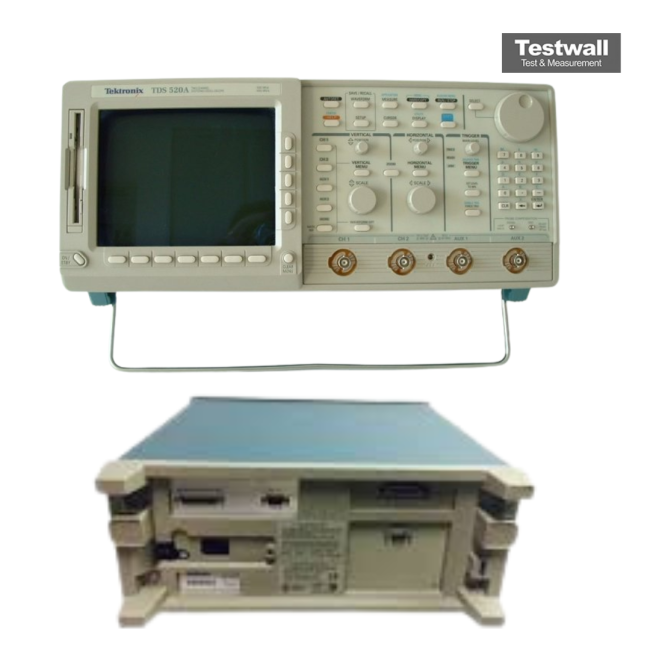

The Tektronix TDS520A Digital Oscilloscope features 500 MHz bandwidth, 2 channels, and a 500 MS/s sample rate, making it ideal for detailed waveform analysis. It offers a 15 kpts record length per channel, 1% vertical accuracy, and up to 12-bit resolution in Hi-Res mode. Advanced triggers include glitch, runt, state, and pattern.
It supports integration, differentiation, FFT, and 25 automatic measurements, with outputs via GPIB, RS232C, Centronics, and a 3.5-in. floppy drive. Compatible with a wide range of active and passive probes.
Testwall can supply the used Tektronix TDS520A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS520A.
