Keysight (Agilent) 54820A
2 Channel 500MHz 2GS/s Digitising Scope
500 MHz Bandwidth
2 Number of Channels
2 GSa/s Sample Rate
2 Mpts per channel Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 2 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 2 Mpts per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 500 ps/div to 20 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 8.4-inch color LCD |
| Trigger Types | Edge, Glitch, Pattern, State, Delay, Duration, TV, Violation |
Keysight Technologies 54820A Options:
- 54820A - 090 - Delete standard probes (2 1160A probes for the 54810A/20A)
- 54820A - 001 - Additional standard probes (2 1160A probes for the 54810A/15A/20A/25A)
- 54820A - 002 - Add 1 1162A 1:1 passive probe
- 54820A - 003 - Add 1 1163A 10:1 500 Ω, low C passive probe
- 54820A - 008 - Add 1 1153A 200 MHz differential probe
- 54820A - 009 - Add 1 1154A 500 MHz differential probe
- 54820A - 010 - Add 1 1159A 1 GHz differential probe
- 54820A - 015 - Extended (runt) triggering
- 54820A - 100 - Communications Mask Test Kit (includes mask library disk and set of termination adapters)
- 54820A - 200 - VoiceControl option
- 54820A - 1BP - Mil Std 45662A and ANSI/NCSL Z-540 calibration with test data
- 54820A - 1CL - Add 1 Keyboard (E2610A)
- 54820A - 1CM - Add 1 Rackmount kit (E2609A)
- 54820A - UL5 - Add 1 Touchpad pointing device (E2612A)
- 54820A - UL6 - Add 1 Clip-on track ball pointing device (E2611A)
- 54820A - W50 - Five-year, customer-return, repair coverage (additional 2 years)
| Model | 54820A |
|---|

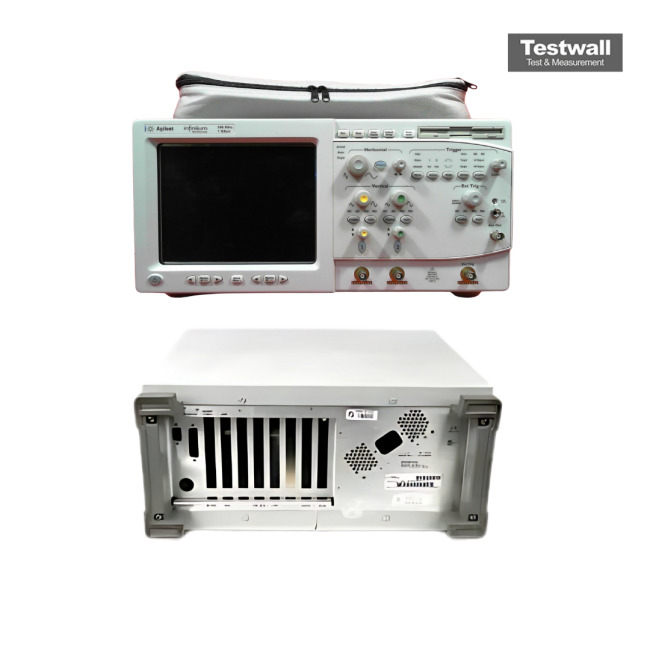

The Keysight (Agilent) 54820A Infiniium Oscilloscope offers 2 channels with 500 MHz bandwidth and 2 GSa/s simultaneous sampling for accurate waveform capture and advanced signal visibility. Designed for design and troubleshooting, it combines analog-style controls with a Windows-based GUI. Key features include USB test capability with embedded MATLAB, communications mask testing, time correlation with the 16700 logic analyzer, and remote web-based access. Voice control and automatic email on trigger enhance usability in hands-free or remote setups.
The oscilloscope provides reliable, high-speed diagnostics for electronic systems and is adaptable with options such as various passive/active probes, voice control, mask testing kits, and touchpad or trackball input devices.
Testwall can supply the used Keysight (Agilent) 54820A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54820A.
