Teladyne LeCroy HDO4024
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 2.5 GS/s (all channels simultaneously) |
| Memory Depth | 12.5 Mpts/ch (standard), up to 250 Mpts/ch (optional) |
| Vertical Resolution | 12-bit ADC |
| Display | 12.1-inch WXGA (1280 x 800) color touch screen LCD |
| Input Impedance | 1 MΩ or 50 Ω |
| Timebase Range | 500 ps/div to 1000 s/div |
| Connectivity | USB Host, USB Device, Ethernet (LAN), HDMI output |
| Trigger Types | Edge, Width, Pattern, Qualified, UART, SPI, I2C, CAN, LIN, and more |
Teladyne LeCroy HDO4024 Options:
- HDO4024 - HDO4K-L - 25 Mpts/ch (50 Mpts interleaved) memory
- HDO4024 - HDO4K-RHD - Removable Hard Drive Package (includes removable hard drive kit and two hard drives)
- HDO4024 - HDO4K-RHD-02 - Additional Removable Hard Drive
- HDO4024 - USB2-GPIB - External GPIB Accessory
- HDO4024 - HDO4K-SOFTCASE - Soft Carrying Case
- HDO4024 - HDO4K-RACK - Rack Mount Accessory
- HDO4024 - HDO4K-POUCH - Accessory Pouch
- HDO4024 - HDO4K-FP-GERMAN - German Front Panel Overlay
- HDO4024 - HDO4K-FP-FRENCH - French Front Panel Overlay
- HDO4024 - HDO4K-FP-ITALIAN - Italian Front Panel Overlay
- HDO4024 - HDO4K-FP-SPANISH - Spanish Front Panel Overlay
- HDO4024 - HDO4K-FP-JAPANESE - Japanese Front Panel Overlay
- HDO4024 - HDO4K-FP-KOREAN - Korean Front Panel Overlay
- HDO4024 - HDO4K-FP-CHNES-TR - Chinese (Tr) Front Panel Overlay
- HDO4024 - HDO4K-FP-CHNES-SI - Chinese (Simp) Front Panel Overlay
- HDO4024 - HDO4K-FP-RUSSIAN - Russian Front Panel Overlay
- HDO4024 - HDO4K-ET-PMT - Electrical Telecom Mask Test Package
- HDO4024 - HDO4K-SPECTRUM - Spectrum Analysis Option
- HDO4024 - HDO4K-PWR - Power Analysis Option
- HDO4024 - HDO4K-ARINC429bus DSymbolic - ARINC 429 Symbolic Decode Option
- HDO4024 - HDO4K-Audiobus TD - Audiobus Trigger and Decode Option for I2S, LJ, RJ, and TDM
- HDO4024 - HDO4K-AUTO - CAN, LIN and FlexRay Trigger and Decode Option
- HDO4024 - HDO4K-CAN FDbus TD - CAN FD Trigger and Decode Option
- HDO4024 - HDO4K-CANbus TD - CAN Trigger and Decode Option
- HDO4024 - HDO4K-DPHYbus D - D-PHY Decode Option
- HDO4024 - HDO4K-DigRF3Gbus D - DigRF 3G Decode Option
- HDO4024 - HDO4K-DigRFv4bus D - DigRF v4 Decode Option
- HDO4024 - HDO4K-ENETbus D - ENET Decode Option
- HDO4024 - HDO4K-FlexRaybus TD - FlexRay Trigger and Decode Option
- HDO4024 - HDO4K-EMB - I2C, SPI and UART Trigger and Decode Option
- HDO4024 - HDO4K-I2Cbus TD - I2C Bus Trigger and Decode Option
- HDO4024 - HDO4K-LINbus TD - LIN Trigger and Decode Option
- HDO4024 - HDO4K-Manchesterbus D - Manchester Decode Option
- HDO4024 - HDO4K-1553 TD - MIL-STD-1553 Trigger and Decode Option
- HDO4024 - HDO4K-NRZbus D - NRZ Decode Option
- HDO4024 - HDO4K-SENTbus D - SENT Decode Option
- HDO4024 - HDO4K-SPIbus TD - SPI Bus Trigger and Decode Option
- HDO4024 - HDO4K-SpaceWirebus D - SpaceWire Decode Option
- HDO4024 - HDO4K-UART-RS232bus TD - UART and RS-232 Trigger and Decode Option
- HDO4024 - HDO4K-USB2bus TD - USB 2.0 Trigger and Decode Option
- HDO4024 - HDO4K-USB2-HSICbus D - USB2-HSIC Decode Option
| Model | HDO4024 |
|---|

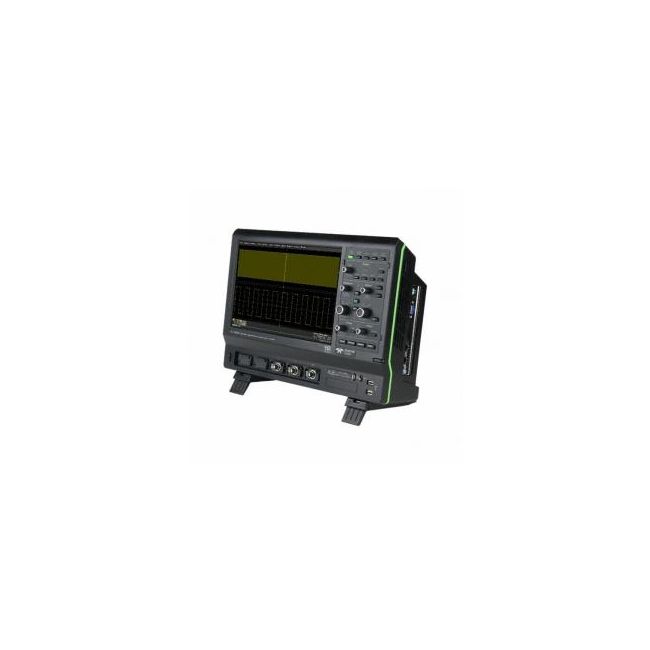

The Teledyne LeCroy HDO4024 High Definition Oscilloscope integrates HD4096 12-bit ADC technology with a 200 MHz bandwidth and four analog inputs for precise signal capture. Offering a 2.5 GS/s maximum sample rate and up to 25 Mpts per channel memory, it ensures exceptional detail in waveform analysis. Its 12.1″ WXGA multi-touch display supports intuitive operation, while tools like WaveScan, History Mode, and LabNotebook enable advanced troubleshooting and streamlined data documentation.
Ideal for electronics development, embedded system debugging, and advanced signal analysis, this oscilloscope combines deep memory, high resolution, and flexible interface options for demanding laboratory or field environments.
Testwall can supply the used Teledyne LeCroy HDO4024, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy HDO4024.
