Keysight (Agilent)
Keysight (Agilent) 54830B
600 MHz Bandwidth
4 GSa/s Sample Rate
2 Analog + 16 Digital (Mixed Signal) Number of Channels
Up to 8 Mpts per channel Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 600 MHz |
| Sample Rate | 4 GSa/s |
| Number of Channels | 2 Analog + 16 Digital (Mixed Signal) |
| Memory Depth | Up to 8 Mpts per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 20 s/div |
| Display | 10.4-inch color LCD display |
| Input Impedance | 50 Ω or 1 MΩ (switchable) |
| Trigger Types | Edge, Glitch, Pattern, State, Delay, Timeout, Violation, and more |
Keysight Technologies 54830B Options:
- 54830B - 040 - 8 Mpts on half the acquisition channels (interleaved) or 4 Mpts on each acquisition channel
- 54830B - 080 - 16 Mpts on half the acquisition channels (interleaved) or 8 Mpts on each acquisition channel
- 54830B - 160 - 32 Mpts on half the acquisition channels (interleaved) or 16 Mpts on each acquisition channel
- 54830B - 320 - 64 Mpts on half the acquisition channels (interleaved) or 32 Mpts on each acquisition channel
- 54830B - 640 - 128 Mpts on half the acquisition channels (interleaved) or 64 Mpts on each acquisition channel
- 54830B - 001 - Add two 1165A, 10:1 passive probes
- 54830B - 002 - Add one 1162A 1:1 passive probe
- 54830B - 004 - Add four 1165A, 10:1 passive probes
- 54830B - 005 - Add one 54826-68701 logic probe kit
- 54830B - 007 - Add one Wedge adapter kit (1 each 3/8/16 signals, 0.5 mm)
- 54830B - 008 - Add one 1153A 200 MHz differential probe
- 54830B - 011 - Add one 1155A 2 Channel, 750 MHz active probe
- 54830B - 012 - Add one 1156A 1.5 GHz active probe
- 54830B - 016 (E2654A) - EZ-Probe Positioner: includes base, joystick, and articulating arm
- 54830B - 017 - ≥20 GB removable hard disk drive. Replaces ≥20 GB internal hard disk with a ≥20 GB removable hard disk
- 54830B - 006 (E2699A) - My Infiniium Integration Package Option
- 54830B - 003 (N5384A) - High-Speed Serial Data Analysis Software Option
- 54830B - 021 (N5391A) - Low-Speed Serial Data Analysis Software Option
- 54830B - 015 (E2681A) - EZJIT Jitter Analysis Software Option
- 54830B - N5383A - Infiniium Performance Upgrade Kit (upgrade system software from A.02.xx to A.03.xx or higher, Windows XP Pro)
- 54830B - E2690A - Advanced Time Interval and Jitter Analysis (US and Canada)
- 54830B - N5385A - Advanced Time Interval and Jitter Analysis (International)
- 54830B - E2692A - Basic Time Interval and Jitter Analysis (US and Canada)
- 54830B - N5387A - Basic Time Interval and Jitter Analysis (International)
- 54830B - N5392A - Ethernet Electrical Performance Validation and Compliance Software
- 54830B - N5395A - Ethernet Electrical Compliance Test Fixture
- 54830B - N5396A - Gigabit Ethernet Jitter Test Cable
- 54830B - E2698A - Ethernet Masks Option
- 54830B - E2683A - USB 2.0 Test Option (for 54830B/D Series with software version A.03.xx or higher)
- 54830B - N2855A - USB 2.0 Test Option (for 54830B/D Series with software version A.02.xx or lower)
- 54830B - E2646A - Additional USB 2.0 SQiDD Test Fixture
- 54830B - E2625A - Communication Mask Test Kit Option
- 54830B - E2682A - VoiceControl Option (for 54830B/D Series with software version A.03.xx or higher)
- 54830B - N2850A - VoiceControl Option (for 54830B/D Series with software version A.02.xx or lower)
- 54830B - 1CM (E2609B) - Add one rackmount kit
- 54830B - 1184A - Testmobile with keyboard and mouse tray, drawer for accessories
- 54830B - E5850A - Time-correlation fixture, link Infiniium scope to logic analyzer
- 54830B - OB3 - Printed service manual
- 54830B - OBF - Printed programmer's manual
- 54830B - AB2 - Printed user's quick start guide in simplified Chinese
- 54830B - ABJ - Printed user's quick start guide in Japanese
- 54830B - A6J - ANSI Z540-compliant calibration
| Model | 54830B |
|---|

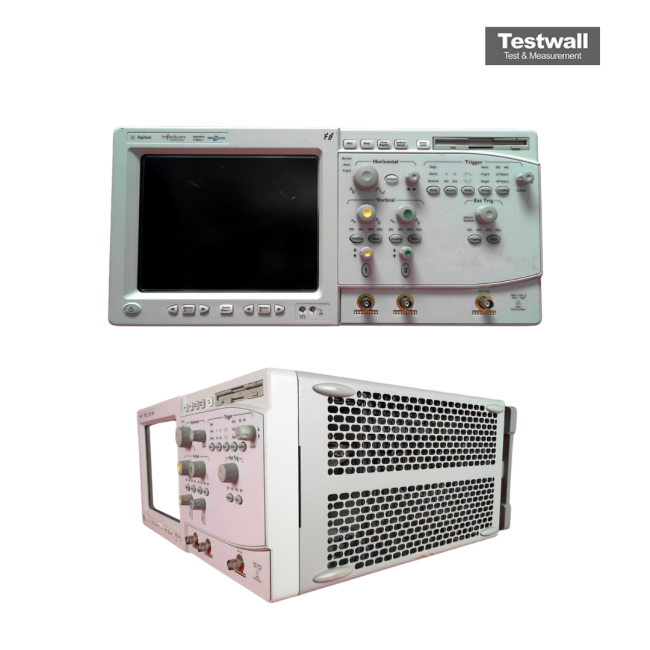

The Keysight (Agilent) 54830B Infiniium Oscilloscope features 600 MHz bandwidth, 2 channels, and a sample rate up to 4 GSa/s. It includes standard 4 Mpts memory and optional 128 Mpts MegaZoom memory, ensuring fast updates and precise waveform acquisition.
Ideal for high-speed digital designs, it supports jitter, serial data, and Ethernet analysis with various software options and integrates with logic analyzers for time correlation.
Testwall can supply the used Keysight (Agilent) 54830B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54830B.
