Keysight (Agilent)
Keysight (Agilent) 54833D
1 GHz Bandwidth
4 GSa/s Sample Rate
4 Analog Channels Number of Channels
4 Mpts per channel (MegaPoints) Memory Depth
12.1-inch color XGA display Display
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | 4 GSa/s |
| Number of Channels | 4 Analog Channels |
| Memory Depth | 4 Mpts per channel (MegaPoints) |
| Display | 12.1-inch color XGA display |
| Vertical Resolution | 8-bit (up to 12-bit with averaging) |
| Rise Time | 350 ps |
| Time Base Range | 1 ps/div to 20 s/div |
| Input Impedance | 50 Ω or 1 MΩ (switchable) |
| Trigger Types | Edge, Glitch, Pattern, TV, Delay, Violation, State, Setup/Hold, and more |
Keysight Technologies 54833D Options:
- 54833D - 040 - 8 Mpts on half the acquisition channels (interleaved) or 4 Mpts on each acquisition channel
- 54833D - 080 - 16 Mpts on half the acquisition channels (interleaved) or 8 Mpts on each acquisition channel
- 54833D - 160 - 32 Mpts on half the acquisition channels (interleaved) or 16 Mpts on each acquisition channel
- 54833D - 320 - 64 Mpts on half the acquisition channels (interleaved) or 32 Mpts on each acquisition channel
- 54833D - 640 - 128 Mpts on half the acquisition channels (interleaved) or 64 Mpts on each acquisition channel
- 54833D - 001 - Add two 1165A, 10:1 passive probes
- 54833D - 002 - Add one 1162A 1:1 passive probe
- 54833D - 004 - Add four 1165A, 10:1 passive probes
- 54833D - 005 - Add one 54826-68701 logic probe kit
- 54833D - 007 - Add one Wedge adapter kit (1 each 3/8/16 signals, 0.5 mm)
- 54833D - 008 - Add one 1153A 200 MHz differential probe
- 54833D - 011 - Add one 1155A 2 Channel, 750 MHz active probe
- 54833D - 012 - Add one 1156A 1.5 GHz active probe
- 54833D - 016 (E2654A) - EZ-Probe Positioner: includes base, joystick, and articulating arm
- 54833D - 017 - ≥20 GB removable hard disk drive. Replaces ≥20 GB internal hard disk with a ≥20 GB removable hard disk
- 54833D - 006 (E2699A) - My Infiniium Integration Package Option
- 54833D - 003 (N5384A) - High-Speed Serial Data Analysis Software Option
- 54833D - 021 (N5391A) - Low-Speed Serial Data Analysis Software Option
- 54833D - 015 (E2681A) - EZJIT Jitter Analysis Software Option
- 54833D - N5383A - Infiniium Performance Upgrade Kit (upgrade system software from A.02.xx to A.03.xx or higher)
- 54833D - N5397A - FPGA Dynamic Probe for Infiniium Mixed-Signal Oscilloscopes
- 54833D - N5392A - Ethernet Electrical Performance Validation and Compliance Software
- 54833D - N5395A - Ethernet Electrical Compliance Test Fixture
- 54833D - N5396A - Gigabit Ethernet Jitter Test Cable
- 54833D - E2698A - Ethernet Masks Option
- 54833D - E2683A - USB 2.0 Test Option (for 54830B/D Series and 54833A with software version A.03.xx or higher)
- 54833D - E2646A - Additional USB 2.0 SQiDD Test Fixture
- 54833D - E2625A - Communication Mask Test Kit Option
- 54833D - E2682A - VoiceControl Option (for 54830B/D Series and 54833A with software version A.03.xx or higher)
- 54833D - E2690A - Advanced Time Interval and Jitter Analysis (US and Canada)
- 54833D - N5385A - Advanced Time Interval and Jitter Analysis (International)
- 54833D - E2692A - Basic Time Interval and Jitter Analysis (US and Canada)
- 54833D - N5387A - Basic Time Interval and Jitter Analysis (International)
- 54833D - 1CM (E2609B) - Add one rackmount kit
- 54833D - 1184A - Testmobile with keyboard and mouse tray, drawer for accessories
- 54833D - E5850A - Time-correlation fixture, link Infiniium scope to logic analyzer
- 54833D - OB3 - Printed service manual
- 54833D - OBF - Printed programmer's manual
- 54833D - AB2 - Printed user's quick start guide in simplified Chinese
- 54833D - ABJ - Printed user's quick start guide in Japanese
- 54833D - A6J - ANSI Z540-compliant calibration
| Model | 54833D |
|---|

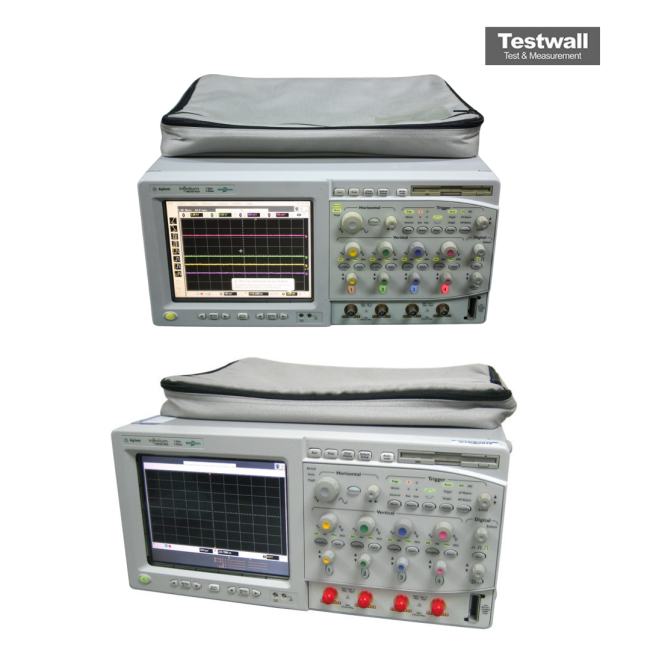

The Keysight (Agilent) 54833D Mixed-Signal Oscilloscope combines two 1 GHz analog channels and 16 digital timing channels, supporting up to 4 GSa/s sampling and optional 128 Mpts memory. This integration enables advanced mixed-signal analysis for both analog and digital systems.
Designed for engineers debugging FPGA or complex digital systems, the 54833D features MegaZoom deep memory, mixed signal triggering, and simple front panel controls with a Windows GUI.
Testwall can supply the used Keysight (Agilent) 54833D Mixed-Signal Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54833D Mixed-Signal Oscilloscope.
