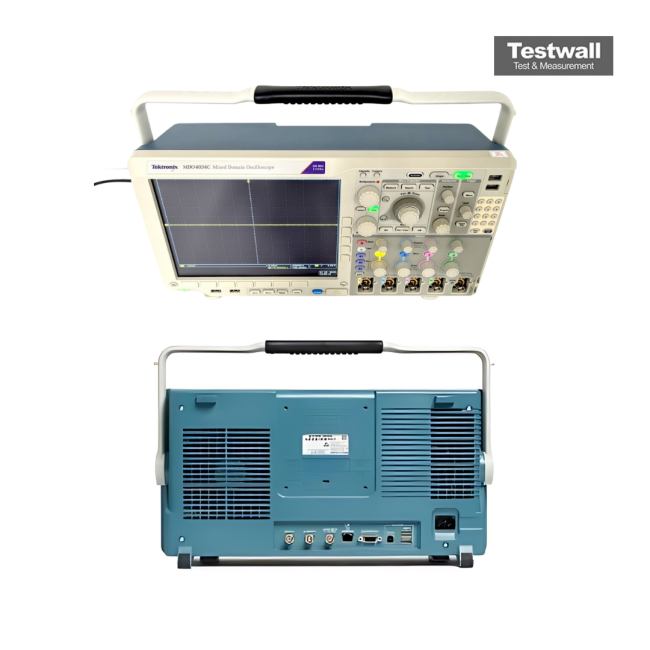

Tektronix MDO4034C
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Analog Channels | 4 |
| Sample Rate | 2.5 GS/s |
| Record Length | 20 M points |
| Integrated Spectrum Analyzer Frequency Range | 9 kHz to 3 GHz |
| Digital Channels | 16 (with P6316 probe) |
| Vertical Resolution | 8 bits |
| Display | 10.4 inch (264 mm) TFT LCD color display |
| Waveform Capture Rate | 340,000 waveforms per second |
| Serial Bus Triggering and Analysis | I2C, SPI, RS-232/422/485/UART, USB, CAN, LIN, FlexRay, MIL-STD-1553, Audio (optional) |
Tektronix MDO4034C Options:
Options available for the Tektronix MDO4000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MDO4034C - MDO4AFG - Built-in 50 MHz arbitrary/function generator
- MDO4034C - MDO4MSO - Mixed signal option, 16 digital channels
- MDO4034C - MDO4SA3 - Spectrum analyzer input 9 kHz - 3 GHz
- MDO4034C - MDO4SA6 - Spectrum analyzer input 9 kHz - 6 GHz
- MDO4034C - MDO4TRIG - Advanced RF power level triggering
- MDO4034C - MDO4SEC - Enhanced security
- MDO4034C - DPO4AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- MDO4034C - DPO4AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MDO4034C - DPO4AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MDO4034C - DPO4AUTOMAX - Extended automotive serial triggering and analysis (CAN, LIN, FlexRay)
- MDO4034C - DPO4COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MDO4034C - DPO4EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MDO4034C - DPO4ENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MDO4034C - DPO4USB - USB 2.0 serial triggering and analysis
- MDO4034C - DPO4LMT - Limit and mask testing
- MDO4034C - DPO4PWR - Power measurement and analysis
- MDO4034C - DPO4VID - Extended video triggering
- MDO4034C - DPO4BND - Application bundle (all DPO4 serial, power, limit/mask and video modules)
The Tektronix MDO4034C is a 6-in-1 integrated oscilloscope with 4 analog channels and optional 16 digital and 1 RF channel. It offers a 350 MHz bandwidth, up to 2.5 GS/s sample rate, 20 Mpoint record length, and FastAcq technology for capturing over 340,000 wfm/s. With optional tools including a spectrum analyzer (up to 6 GHz), logic and protocol analyzer, arbitrary/function generator, and integrated DVM/frequency counter, this scope provides unmatched system-level visibility and advanced RF analysis with SignalVu-PC software.
Ideal for EMI troubleshooting and wireless module testing, it supports Bluetooth, WLAN analysis, modulation formats, and deep signal inspection with Wave Inspector® navigation and serial bus decoding.
Testwall can supply the used Tektronix MDO4034C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO4034C.
