Keysight (Agilent)

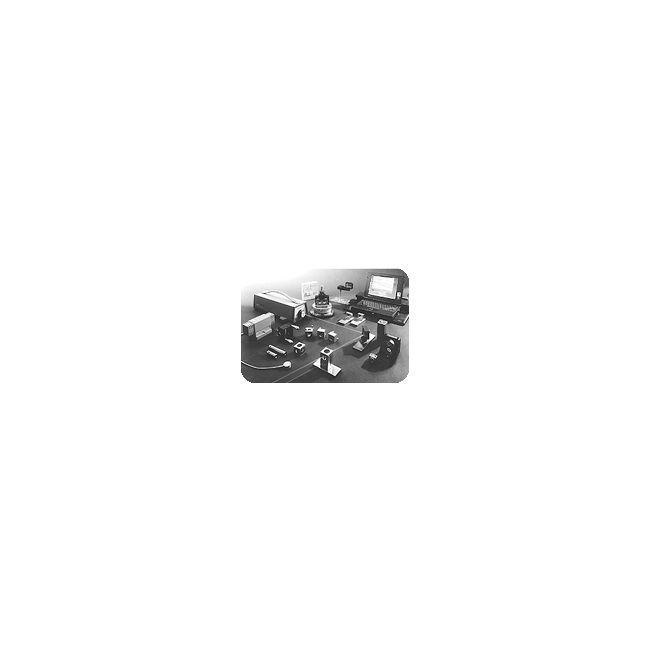

Keysight (Agilent) 5529A
Dynamic Calibrator System
Laser Interferometer System Measurement Type
632.8 nm (HeNe Laser) Laser Wavelength
0.31 nm (with 4-pass optics) Linear Measurement Resolution
2.16 m/s (with standard optics) Maximum Linear Velocity
±0.02 ppm (laser frequency stability) Linear Accuracy
| Attribute | Value |
|---|---|
| Measurement Type | Laser Interferometer System |
| Laser Wavelength | 632.8 nm (HeNe Laser) |
| Linear Measurement Resolution | 0.31 nm (with 4-pass optics) |
| Maximum Linear Velocity | 2.16 m/s (with standard optics) |
| Linear Accuracy | ±0.02 ppm (laser frequency stability) |
| Operating Temperature Range | 15°C to 35°C (59°F to 95°F) |
| Interface/Connectivity | GPIB (IEEE-488), RS-232 |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Measurement Axes | Up to 3 axes simultaneously |
| Applications | Positioning, straightness, flatness, squareness, parallelism, and angular measurements |
Keysight (Agilent) 5529A Options:
- 5529A - UK6 - Factory calibration option for ±0.02 ppm wavelength accuracy
- 5519A - 10766A - Linear Optics (Linear Interferometer)
- 5519A - 10767A - Linear Retroreflector
- 5519A - 10706A/B - Plane Mirror Optics
- 5519A - 10716A - High Resolution Plane Mirror Optics
- 5519A - 10724A - Plane Mirror Reflector
- 5519A - 10770A - Angular Interferometer
- 5519A - 10771A - Angular Reflector
- 5519A - 10772A - Tuning Mirror
- 5519A - 10773A - Flatness Mirror
- 5519A - 10774A - Short Range Straightness Optics
- 5519A - 10775A - Long Range Straightness Optics
- 5519A - 10776A - Straightness Mount
- 5519A - 10776-67001 - Straightness Retroreflector
- 5519A - 10777A - Optical Square
- 5519A - 10777-20007 - Optical Square Base
- 5519A - 10759A - Foot Spacing Kit
- 5519A - 10768-20214 - Base – Large
- 5519A - 10784A - Base (for Height Adjuster/Post)
- 5519A - 10785A - Height Adjuster/Post
- 5519A - 10769B - Turning Mirror (Base Block Only)
- 5519A - 10753B - Laser Tripod
- 5529A - 10751C - Air Sensor (5 m cable, for WOL compensation)
- 5529A - 10751D - Air Sensor (15 m cable, for WOL compensation)
- 5529A - 10757D - Material Temperature Sensor (5 m cable)
- 5529A - 10757E - Material Temperature Sensor (15 m cable)
- 5529A - 10757F - Material Temperature Sensor (25 m cable)
- 5529A - 10886A - PC Compensation Board
- 5529A - 10887A - PC Calibrator Board
- 5529A - 55290A - Angular Position Measurement Kit
- 5529A - 55292A - USB Expansion Module
| Model | 5529A |
|---|
The Keysight (Agilent) 5529A Dynamic Calibration System enables precise machine tool accuracy measurement and error correction with comprehensive calibration tools, including laser sources, compensator boards, sensors, and accessories.
Ideal for manufacturers and machine tool users, the 5529A helps diagnose geometry issues and supports seven international standards, with upgrade options available from the 5528A system.
Testwall can supply the used Keysight (Agilent) 5529A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 5529A.
