Keysight (Agilent) 6256B
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 20 V |
| Output Current Range | 0 to 5 A |
| Maximum Output Power | 100 W |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Current) | 0.01% + 250 µA |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Line Regulation (Current) | 0.01% + 250 µA |
| Output Ripple and Noise (Voltage, RMS) | 0.5 mV RMS |
| Input Voltage | 115/230 VAC, 48–66 Hz |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies 6256B Options:
- 6256B - 05 - $10
- 6256B - 07 - $25
- 6256B - 08 - $25
- 6256B - 09 - $45
- 6256B - 10 - $50
- 6256B - 13 - $60
- 6256B - 14 - $60
- 6256B - 27 - $10
- 6256B - 28 - $10
| Model | 6256B |
|---|

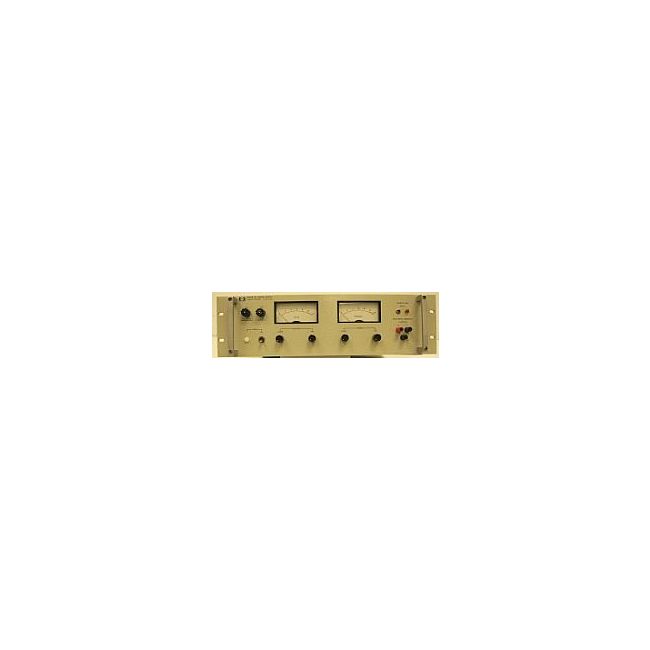

The Keysight (Agilent) 6256B is a robust general-purpose power supply offering precise voltage (0–10V) and current (up to 20A) control with a power output of 200W. It features CV/CC modes, a 0.01% regulation, and front panel controls for easy fine-tuning. Additional highlights include a crowbar circuit with overvoltage indicator, remote sensing, and auto-series/parallel/tracking functions.
Ideal for varied test environments, the 6256B operates on 115 VAC and 57–63 Hz, and is housed in a 35 lb unit. It is metered and programmable, making it suitable for advanced applications.
Testwall can supply the used Keysight (Agilent) 6256B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6256B.
