Keysight (Agilent) 8702A
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Measurement Type | Scalar and Vector Network Analysis |
| Number of Ports | 2-Port |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Display | Built-in CRT Display with Multiple Trace Formats |
| Measurement Parameters | S-Parameters (S11, S21, S12, S22), Impedance, Admittance, Group Delay |
| Interface/Connectivity | GPIB (IEEE-488) Interface |
| Calibration Methods | Full 2-Port, 1-Port, Response, and TRL Calibration |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Keysight Technologies 8702A Options:
- 8702A - 010 - Time Domain
- 8702A - 802 - HP 9122 Dual Disc Drive
- 8702A - 910 - Extra Operating and Service Manual
- 8702A - 913 - Rack Mount Kit
- 8702A - W30 - Extended return-to-HP service
| Model | 8702A |
|---|

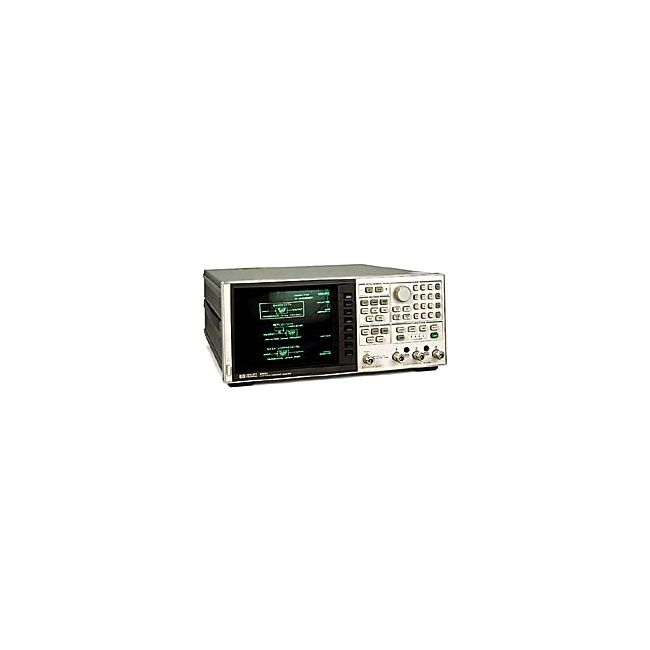

The Keysight (Agilent) 8702A Lightwave Component Analyzer offers precise characterization of modulation transfer functions from 300 kHz to 3 GHz at a fixed wavelength of 1300 nm. With HP-IB interface, it supports calibrated measurements for lasers, photodiodes, optical fibers, and high-bandwidth electrical components.
It provides valuable insights into how components affect signal integrity by sweeping the modulation frequency, enabling optimization of transmission systems.
Testwall can supply the used Keysight (Agilent) 8702A Lightwave Component Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8702A Lightwave Component Analyzer.
