Keysight (Agilent)
Keysight (Agilent) 6268B
40V 30A Power Supply
0 to 40 V Output Voltage Range
0 to 10 A Output Current Range
400 W Maximum Output Power
2 mV Load Regulation (Voltage)
4 mA Load Regulation (Current)
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 40 V |
| Output Current Range | 0 to 10 A |
| Maximum Output Power | 400 W |
| Load Regulation (Voltage) | 2 mV |
| Load Regulation (Current) | 4 mA |
| Line Regulation (Voltage) | 1 mV |
| Line Regulation (Current) | 2 mA |
| Input Voltage | 115/230 VAC, 47-63 Hz |
| Output Ripple and Noise (Voltage, RMS) | 3 mV |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies 6268B Options:
- 6268B - 05 - $10 option
- 6268B - 07 - $25 option
- 6268B - 08 - $25 option
- 6268B - 09 - $45 option
- 6268B - 10 - $50 option
- 6268B - 13 - $60 option
- 6268B - 14 - $60 option
- 6268B - 27 - $10 option
- 6268B - 28 - $10 option
| Model | 6268B |
|---|

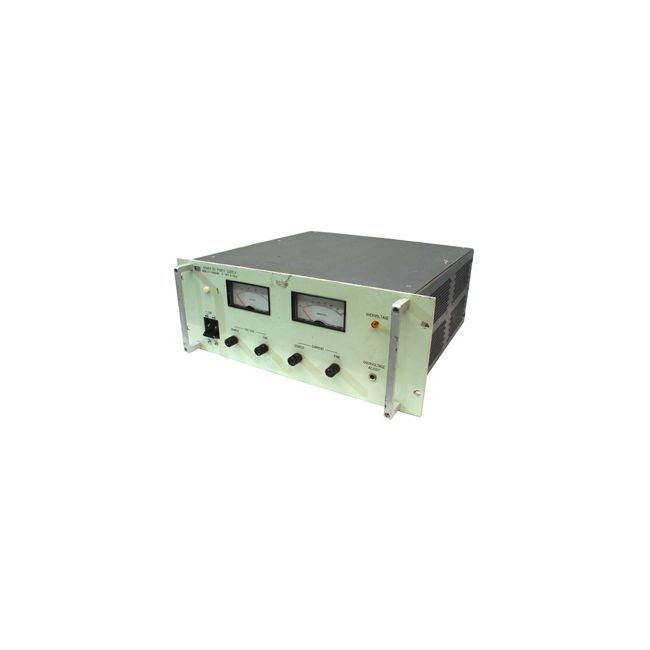

The Keysight (Agilent) 6268B is a high-efficiency, constant-voltage/constant-current DC power supply delivering 0–40V at up to 30A. Housed in a full-rack-width chassis, it offers analog programmability, remote sensing, and <50 µs load transient recovery. With ripple and noise maintained at 1 mV RMS (CV) and 20 mA RMS (CC), it ensures stable, low-noise output. Protection features include over-voltage shutdown and support for auto-series, auto-parallel, and auto-tracking configurations.
Ideal for demanding lab and industrial environments, the 6268B maintains precise load and line regulation at 0.01% + 200 µV and 0.02% + 2 mA, supporting consistent performance across high-power applications.
Testwall can supply the used Keysight (Agilent) 6268B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6268B.
