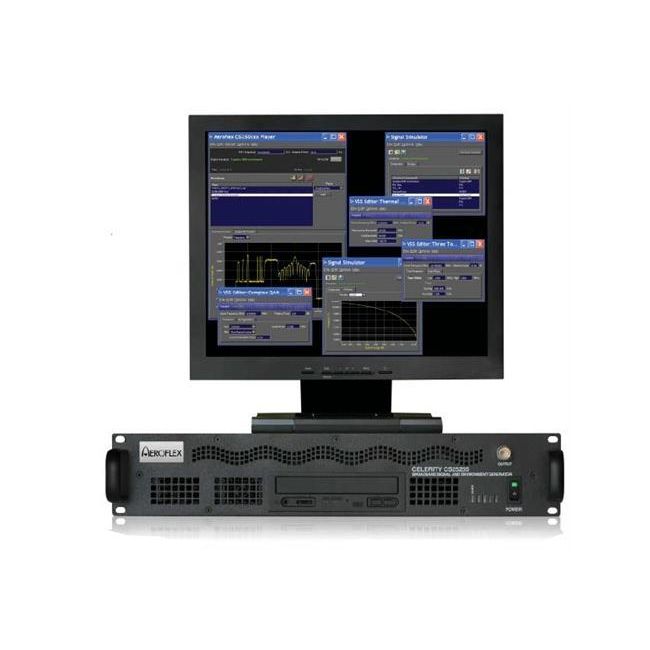

Aeroflex CS25020 40.00GHz Signal Generator
| Attribute | Value |
|---|---|
| Frequency Range | 250 kHz to 40.00 GHz |
| Output Power Range | -110 dBm to +13 dBm |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -115 dBc/Hz at 10 kHz offset (typical) |
| Modulation Types | AM, FM, Phase, Pulse |
| RF Connector Type | 2.92 mm (K-type) female |
| Frequency Switching Speed | Less than 5 ms |
| Reference Frequency | 10 MHz internal/external reference |
| Interface | GPIB, USB, LAN (LXI compliant) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Aeroflex CS25020 40.00GHz Signal Generator Options:
- CS25020 - Upconverter Options - Tunable or fixed, up to 40 GHz in bands
- CS25020 - Memory Sequencing Option - High speed address sequencing
- CS25020 - Output Options (Precision Attenuators) - Precision attenuators
- CS25020 - Output Options (High Speed Attenuators) - High speed attenuators
- CS25020 - Output Options (Reconstruction Filters) - Reconstruction filters
- CS25020 - Output Options (High Output Power) - High output power
- CS25020 - Sample Clock Option - Low phase noise
- CS25020 - Disk Storage Options (73 & 146 GB HD) - Fixed and removable drives, 73 & 146 GB HD
- CS25020 - Disk Storage Options (CD-RW) - CD-RW drive
- CS25020 - Disk Storage Options (DVD-RW) - DVD-RW drive
- CS25020 - Multiple Channel Options - 1 to 8 coherent or independent I/Q baseband channels
- CS25020 - Multiple Signal Options - RF, baseband, digital, I/Q
- CS25020 - Controller Option - UltraSPARC/Solaris
- CS25020 - Remote Control Option - 10/100baseT Ethernet
- CS25020 - Peripheral Options (Keyboard and Mouse) - Keyboard and mouse
- CS25020 - Peripheral Options (Monitors) - Flat panel and CRT monitors
- CS25020 - Real World Data Input Options (Wideband Analog) - Wideband analog input
- CS25020 - Real World Data Input Options (High Speed Digital) - High speed digital input (LVDS, DECL, PECL, TTL)
| Model | CS25020 |
|---|
The Aeroflex CS25020-40-00GHz is a high-performance microwave frequency synthesizer with coverage up to 40 GHz. Engineered for radar, satellite, and wireless communication testing, it offers exceptional frequency stability and spectral purity. Its wideband signal generation and ultra-low phase noise provide accurate, repeatable results in both laboratory and production environments.
Featuring seamless integration into automated testing systems, the CS25020-40-00GHz improves efficiency and precision for complex RF applications. Engineers benefit from its reliable design when absolute accuracy is required.
Testwall can supply the used Aeroflex CS25020-40-00GHz, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Aeroflex CS25020-40-00GHz.
