Keysight (Agilent)
Keysight (Agilent) 6472C
Power Supply 0 - 64VDC 150 Amps.
0 to 20 V Output Voltage Range
0 to 35 A Output Current Range
200 W Output Power
Single Output Number of Outputs
GPIB (IEEE-488) Programming Interface
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 20 V |
| Output Current Range | 0 to 35 A |
| Output Power | 200 W |
| Number of Outputs | Single Output |
| Programming Interface | GPIB (IEEE-488) |
| Voltage Programming Accuracy | 0.05% + 10 mV |
| Current Programming Accuracy | 0.2% + 60 mA |
| Load Regulation (Voltage) | 2 mV |
| Operating Temperature Range | 0°C to 55°C |
| Form Factor | Rack Mountable |
Keysight Technologies 6472C Options:
- 6472C - 001 - 208 V ac, ±10%, 3-phase, 55 A/phase, 57-63 Hz
- 6472C - 002 - 230 V ac, ±10%, 3-phase, 50 A/phase, 57-63 Hz
- 6472C - 003 - 460 V ac, ±10%, 3-phase, 25 A/phase, 57-63 Hz
- 6472C - 005 - Realignment for 50 Hz operation
- 6472C - 006 - Internal overvoltage protection crowbar
- 6472C - 023 - Rack mounting attachments for standard 19" rack
- 6472C - 031 - 380 V ac, ±10%, 3-phase, 30 A/phase, 57-63 Hz
- 6472C - 032 - 400 V ac, ±10%, 3-phase, 28.5 A/phase, 57-63 Hz
- 6472C - 040 - Prepares power supply to be programmed with resistance by a 6940B or 6942A
- 6472C - 910 - One extra operating and service manual shipped with each power supply
| Model | 6472C |
|---|

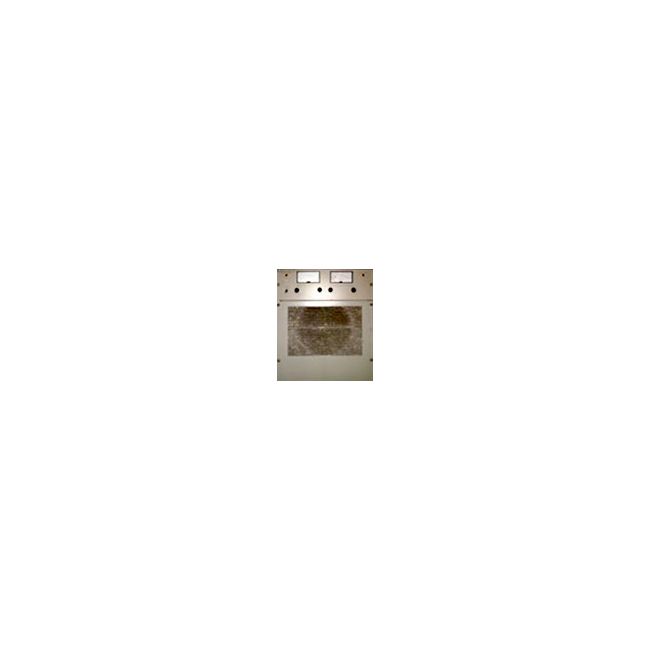

The Keysight (Agilent) 6472C Power Supply delivers a precise constant voltage/current output, adjustable through most of its range, maintaining full-rated output under all conditions.
It features remote programming and sensing to control output and enhance regulation by compensating for voltage drops across load leads.
Testwall can supply the used Keysight (Agilent) 6472C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6472C.
