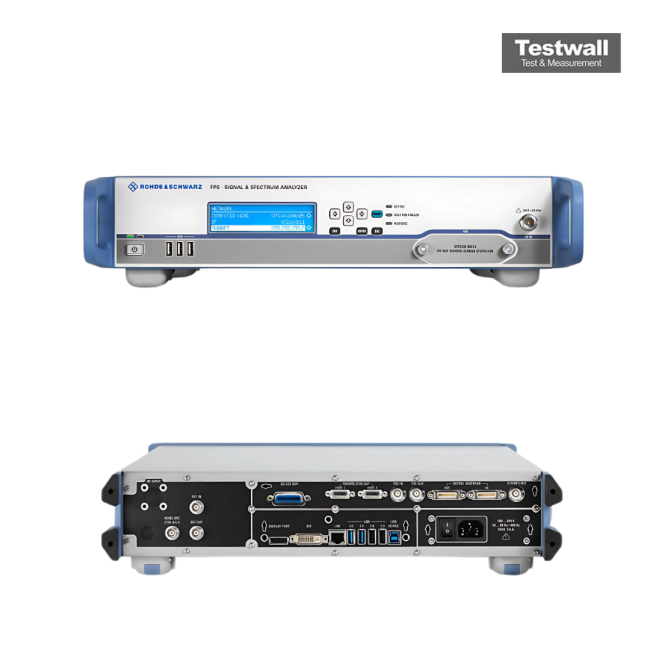

Rohde & Schwarz FPS13
| Attribute | Value |
|---|---|
| Frequency Range | 2 Hz to 13.6 GHz |
| Displayed Average Noise Level (DANL) | -165 dBm (typ.) at 1 GHz with preamplifier enabled |
| Phase Noise | -108 dBc/Hz at 10 kHz offset from 1 GHz carrier (typ.) |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz (in 1/2/3/5 steps), plus FFT-based bandwidths |
| Third-Order Intercept Point (TOI) | +20 dBm (typ.) at 1 GHz |
| Maximum Input Power (RF) | +30 dBm (continuous), max DC voltage 50 V |
| Input Impedance | 50 Ohm |
| Measurement Speed | Up to 1 million samples/s with I/Q streaming capability |
| Display | 12.1-inch WXGA (1366 x 768) multi-touch color display |
| Connectivity & Interfaces | USB, LAN (1000BASE-T), GPIB (optional), DisplayPort, 10 MHz reference input/output |
Rohde & Schwarz FPS13 Options:
- FPS13 - B0 - Rear RF Input
- FPS13 - B4 - OCXO Reference Frequency
- FPS13 - B10 - External Generator Control
- FPS13 - B18 - Spare Solid-State-Drive
- FPS13 - B22 - RF Preamplifier, 9 kHz to 7 GHz
- FPS13 - B24 - RF Preamplifier, 9 kHz to 13.6 GHz
- FPS13 - B25 - Electronic Attenuator, 1 dB steps
- FPS13 - B28V - Noise Source Control 0/28 V
- FPS13 - B40 - 40 MHz Analysis Bandwidth
- FPS13 - B160 - 160 MHz Analysis Bandwidth (for frequencies ≤ 7 GHz)
- FPS13 - K6 - Pulse Measurements
- FPS13 - K7 - Analog Modulation Analysis for AM, FM, φM
- FPS13 - K10 - GSM/EDGE/EDGE Evolution/VAMOS Measurements
- FPS13 - K18 - Power Amplifier Measurements
- FPS13 - K30 - Noise Figure Measurements
- FPS13 - K33 - Security Write Protection of solid state drive
- FPS13 - K40 - Phase Noise Measurements
- FPS13 - K70 - Vector Signal Analysis
- FPS13 - K72 - 3GPP FDD (WCDMA) BS Measurements (incl. HSDPA and HSDPA+)
- FPS13 - K73 - 3GPP FDD (WCDMA) MS Measurements (incl. HSUPA and HSUPA+)
- FPS13 - K76 - TD-SCDMA BS Measurements
- FPS13 - K77 - TD-SCDMA UE Measurements
- FPS13 - K82 - CDMA2000® BS Measurements
- FPS13 - K83 - CDMA2000® MS Measurements
- FPS13 - K84 - 1xEV-DO BS Measurements
- FPS13 - K85 - 1xEV-DO MS Measurements
- FPS13 - K91 - WLAN 802.11a/b/g Measurements
- FPS13 - K91n - WLAN 802.11n Measurements (requires K91 and B40 or B160)
- FPS13 - K91p - WLAN 802.11p Measurements (requires K91)
- FPS13 - K91ac - WLAN 802.11ac Measurements (requires K91 and B160)
- FPS13 - K100 - EUTRA/LTE FDD Downlink Measurements
- FPS13 - K101 - EUTRA/LTE FDD Uplink Measurements
- FPS13 - K102 - EUTRA/LTE Downlink MIMO Measurements (requires K100 or K104)
- FPS13 - K104 - EUTRA/LTE TDD Downlink Measurements
- FPS13 - K105 - EUTRA/LTE TDD Uplink Measurements
| Model | FPS13 |
|---|
The Rohde and Schwarz FPS13 Spectrum Analyzer features frequency coverage up to 40 GHz with 160 MHz signal analysis bandwidth, offering 0.4 dB level measurement uncertainty up to 7 GHz. Its high dynamic range includes –155 dBm DANL at 1 GHz and –110 dBc/Hz phase noise at 10 kHz offset.
This analyzer supports advanced modulation standards such as GSM, WCDMA, LTE, and WLAN, with removable hard disk and high-speed data throughput for secure and efficient use in R&D and production.
Testwall can supply the used Rohde and Schwarz FPS13, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz FPS13.
