Keysight (Agilent) 6479C
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 500 V |
| Output Current Range | 0 to 120 mA |
| Output Power | 50 W |
| Voltage Programming Accuracy | 0.05% + 25 mV |
| Current Programming Accuracy | 0.05% + 1.5 mA |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 2 mV RMS / 10 mA RMS |
| Interface | GPIB (IEEE-488) |
| Input Power Requirements | 100/120/220/240 VAC, 47–63 Hz |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies 6479C Options:
- 6479C - 001 - 208 V ac, ±10%, 3-phase, 55 A/phase, 57-63 Hz
- 6479C - 002 - 230 V ac, ±10%, 3-phase, 50 A/phase, 57-63 Hz
- 6479C - 003 - 460 V ac, ±10%, 3-phase, 25 A/phase, 57-63 Hz
- 6479C - 005 - Realignment for 50 Hz operation
- 6479C - 006 - Internal overvoltage protection crowbar
- 6479C - 023 - Rack mounting attachments for standard 19" rack
- 6479C - 031 - 380 V ac, ±10%, 3-phase, 30 A/phase, 57-63 Hz
- 6479C - 032 - 400 V ac, ±10%, 3-phase, 28.5 A/phase, 57-63 Hz
- 6479C - 040 - Prepares power supply to be programmed with resistance by a 6940B or 6942A
- 6479C - 910 - One extra operating and service manual shipped with each power supply
| Model | 6479C |
|---|

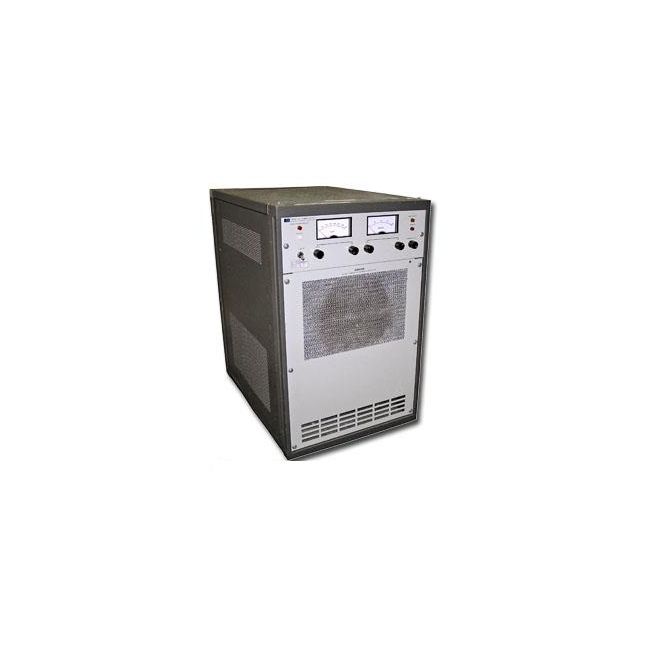

The Keysight (Agilent) 6479C Used Power Supply is an SCR-regulated device delivering 0 to 300 V at up to 35 A, ideal for medium to high-power applications. This unit supports both constant voltage and constant current modes, offering adjustable outputs across its full range with moderate regulation and ripple. Front panel controls enable precise setting of current and voltage limits.
Suitable for test setups requiring fixed or variable DC sources, the Keysight 6479C enables effective overload and short circuit management through its integrated control features.
Testwall can supply the used Keysight (Agilent) 6479C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6479C.
