Keysight (Agilent) 66101A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 8V |
| Output Current Range | 0 to 16A |
| Output Power | 128W maximum |
| Input Voltage | 100/120/220/240 VAC, 47-63 Hz |
| Load Regulation (Voltage) | 2mV |
| Load Regulation (Current) | 4mA |
| Programming Accuracy (Voltage) | 10mV |
| Programming Accuracy (Current) | 20mA |
| Form Factor | Half-rack, 1U module for Keysight 66000 Modular Power System mainframe |
| Interface | GPIB (IEEE-488) via mainframe |
| Model | 66101A |
|---|
The Keysight (Agilent) 66101A is a 128W GPIB modular DC power supply providing 0 to 8 V and up to 16 A output, with a high programming accuracy of 0.03% + 3 mV for voltage and 0.03% + 6 mA for current. It features low ripple and noise (2 mV rms, 5 mV p-p voltage; 8 mA rms current).

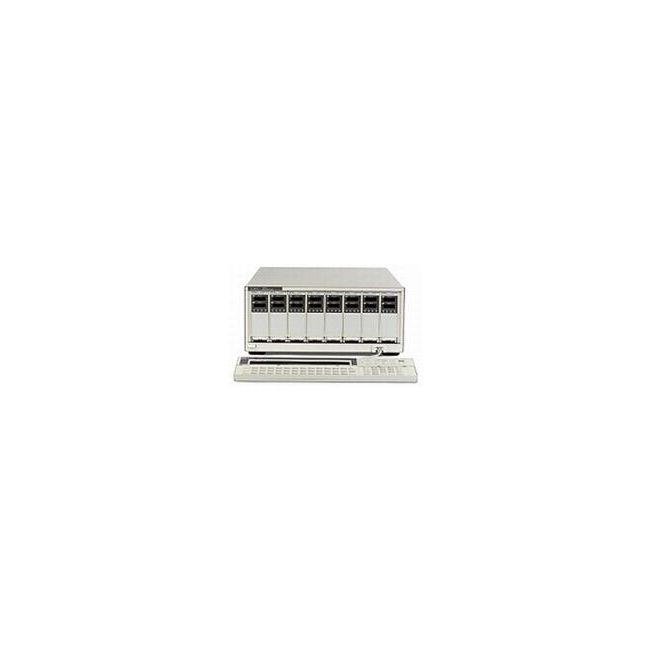

Ideal for ATE and production test environments, the 66101A’s modular design allows for flexibility, conserving rack space with up to 8 outputs per 4U mainframe. LIST mode and advanced triggering enhance automation.
Testwall can supply the used Keysight (Agilent) 66101A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 66101A.
