Keysight (Agilent)

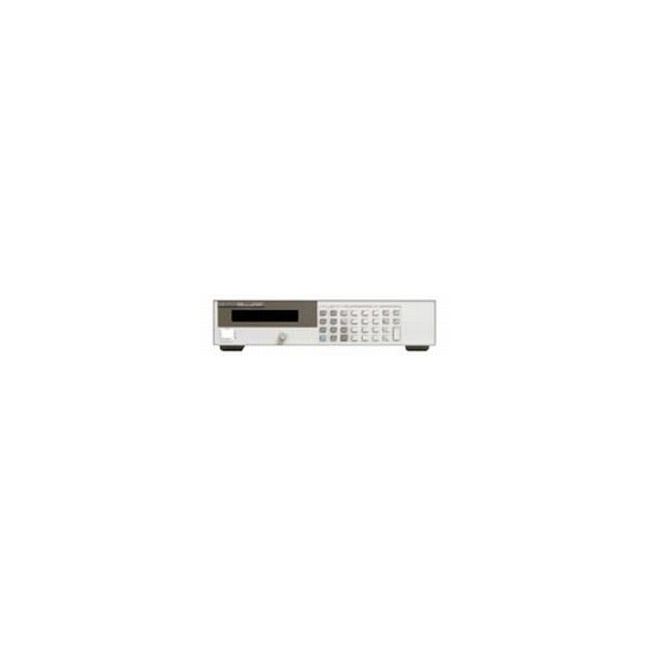

Keysight (Agilent) 6652A
20V 25A DC Power Supply Unit
0 to 20 V Output Voltage Range
0 to 25 A Output Current Range
500 W Output Power
0.05% + 10 mV Programming Accuracy (Voltage)
0.2% + 50 mA Programming Accuracy (Current)
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 20 V |
| Output Current Range | 0 to 25 A |
| Output Power | 500 W |
| Programming Accuracy (Voltage) | 0.05% + 10 mV |
| Programming Accuracy (Current) | 0.2% + 50 mA |
| Readback Accuracy (Voltage) | 0.05% + 10 mV |
| Readback Accuracy (Current) | 0.2% + 50 mA |
| Input Voltage | 100/120/220/240 VAC, 47–63 Hz |
| Interface | GPIB (IEEE-488) |
| Form Factor | Rack mountable, 2U (3.5 in height) |
Keysight Technologies 6652A Options:
- 6652A - Opt 100 - 87 to 106 Vac, 47 to 63 Hz
- 6652A - Opt 120 - 104 to 127 Vac, 47 to 63 Hz
- 6652A - Opt 220 - 191 to 233 Vac, 47 to 63 Hz
- 6652A - Opt 240 - 209 to 250 Vac, 47 to 63 Hz
- 6652A - Opt 908 - Rack-mount Kit (p/n 5062-3977)
- 6652A - Opt 909 - Rack-mount Kit w/ Handles (p/n 5063-9221)
- 6652A - Opt 0L2 - Extra Standard Documentation Package
- 6652A - Opt 0B3 - Service Manual
- 6652A - Opt 0B0 - No documentation package
- 6652A - J03 - Special Order Option (27 V / 18.5 A output)
| Model | 6652A |
|---|
The Keysight (Agilent) 6652A is a 500W, single-output DC power supply delivering 0–20V and up to 25A with high accuracy and remote programmability. It features ±0.06% + 10 mV voltage programming accuracy, ±0.15% + 25 mA current accuracy, and ripple as low as 300 µV RMS and 10 mA RMS. With a built-in GPIB interface, SCPI programming, and support for serial linking of up to 16 units, it enables comprehensive remote control and data feedback. Protection includes over-voltage/current, thermal shutdown, and DFI/RI capability.
Ideal for automated test systems and demanding high-current applications, the 6652A supports auto-parallel/series connections and user-defined startup states, making it both flexible and reliable in lab or production environments.
Testwall can supply the used Keysight (Agilent) 6652A fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6652A.
