Keysight (Agilent)
Keysight (Agilent) 6691A
DC Power Supply 30V 220A
0 to 8 V Output Voltage
0 to 375 A Output Current
3000 W Output Power
0.05% + 10 mV Voltage Programming Accuracy
0.1% + 375 mA Current Programming Accuracy
| Attribute | Value |
|---|---|
| Output Voltage | 0 to 8 V |
| Output Current | 0 to 375 A |
| Output Power | 3000 W |
| Voltage Programming Accuracy | 0.05% + 10 mV |
| Current Programming Accuracy | 0.1% + 375 mA |
| Voltage Readback Accuracy | 0.05% + 10 mV |
| Current Readback Accuracy | 0.1% + 375 mA |
| Interface | GPIB (IEEE-488), RS-232 |
| Input Voltage | 208/220 VAC, 3-phase, 50/60 Hz |
| Form Factor | Rack Mountable, 3U |
| Model | 6691A |
|---|

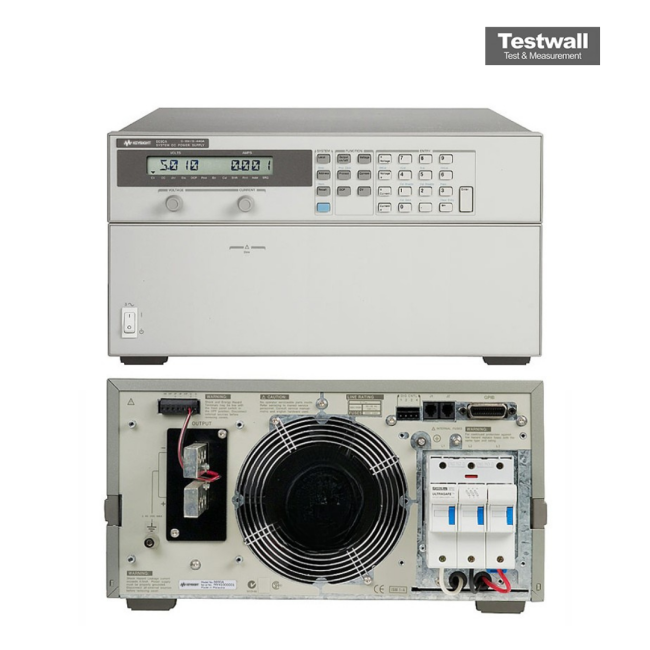

The Keysight (Agilent) 6691A is a high-power DC power supply offering 6600W output, with 0–30 V and up to 220 A. It delivers low ripple (2.5 mVrms) and peak-to-peak noise of 25 mV. Integrated analog voltage/current control, GPIB interface, and fan-speed control ensure precision and quiet operation.
Ideal for automated test systems, the 6691A includes advanced programmable functions and built-in measurements for streamlined testing.
Testwall can supply the used Keysight (Agilent) 6691A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6691A.
