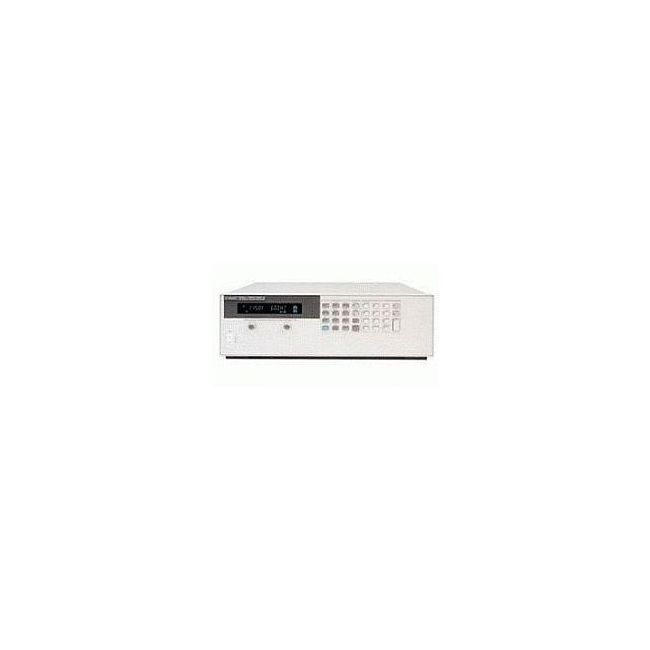

Keysight (Agilent) 6813B
1750 AC Power Source/Analyser
0 to 300 V AC RMS Output Voltage Range
0 to 13.3 A RMS Output Current Range
1750 VA Output Power
45 Hz to 1000 Hz Frequency Range
Sine wave synthesized Output Waveform
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 300 V AC RMS |
| Output Current Range | 0 to 13.3 A RMS |
| Output Power | 1750 VA |
| Frequency Range | 45 Hz to 1000 Hz |
| Output Waveform | Sine wave synthesized |
| Total Harmonic Distortion (THD) | Less than 0.25% at full load |
| Voltage Programming Accuracy | ±0.1% + 0.2 V |
| Frequency Programming Accuracy | ±0.01% of set frequency |
| Interface | GPIB (IEEE-488) and RS-232 |
| Input Voltage | 208/220/230/240 V AC, single phase |
Keysight Technologies 6813B Options:
- 6813B - 019 - 2000 VA ac Power source/analyzer (6813B only)
- 6813B - 020 - Dual power analyzer option
- 6813B - 0BN - Service Manual, extra Operating Guide, and Programming Guide
- 6813B - 1CM - Rack-mount Kit, p/n 5062-3977 (quantity 2) (support rails required)
- 6813B - 1CP - Rack-mount Kit with Handles, p/n 5062-3983 (support rails required)
- 6813B - 200 - 174-220 Vac (200 Vac nominal), 47-63 Hz, Japan only
- 6813B - 230 - 191 to 254 Vac (230 Vac nominal), 24-63 Hz
- 6813B - 832 - 4 mm² wire size, unterminated
- 6813B - 842 - Line Cord with IEC 309; 32 A 220 V plug
- 6813B - 844 - Line Cord with NEMA L6-30P; 30 A 250 V Locking Plug
| Model | 6813B |
|---|
The Keysight (Agilent) 6813B AC Power Source/Analyzer delivers 1750 VA with output ranges up to 300 Vrms and 13 A, ideal for high-demand testing in power supply development, UPS systems, and avionics ATE. With frequency support from DC to 1 kHz, this unit features a built-in power analyzer offering multimeter, oscilloscope, harmonic analysis, and waveform generation. It ensures superior measurement accuracy (0.03% voltage, 0.05% current) and includes advanced protections for DUTs. Optional configurations like dual analyzers and multiple power modes enhance versatility.
A graphical user interface enables fast setup without programming, saving space and streamlining workflows in both lab and rack environments.
Testwall can supply the used Keysight (Agilent) 6813B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6813B.
