Keysight (Agilent) 6834B
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 135 VAC / 0 to 270 VAC |
| Maximum Output Power | 1750 VA |
| Output Frequency Range | 45 Hz to 1000 Hz |
| Maximum Output Current | 13 A RMS (low voltage range) / 6.5 A RMS (high voltage range) |
| Number of Output Phases | Single Phase |
| Voltage Regulation | 0.1% of full scale |
| Total Harmonic Distortion (THD) | Less than 0.25% at full linear load |
| Programming Interface | GPIB (IEEE-488), RS-232 |
| Input Voltage | 104 to 127 VAC / 208 to 254 VAC, 47 to 63 Hz |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies 6834B Options:
- 6834B - Opt 400 - 360 to 440 Vac, 3-phase, 47 to 63 Hz input (required for Europe)
- 6834B - Opt 0BN - Service Manual, extra Operating Guide, and Programming Guide
- 6834B - Opt 1CM - Rack-mount Kit, p/n 5062-3977 (quantity 2) (support rails required; E3664AC Cabinet Rails must be ordered when rack mounting)
| Model | 6834B |
|---|

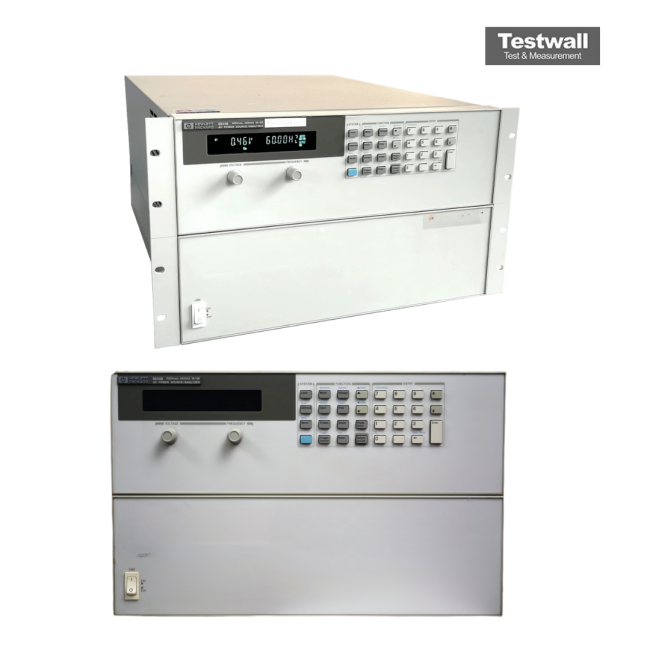

The Keysight (Agilent) 6834B is a high-performance AC power source/analyzer designed for precision applications. It supports both single and three-phase AC outputs, with a maximum frequency of 5 kHz, built-in GPIB and RS-232 interfaces, and VXI plug&play drivers. Featuring arbitrary waveform generation, harmonic analysis, and power line disturbance simulation, this compact unit ensures accurate power testing across diverse environments.
Ideal for UPS testing, avionics ATE, and compliance assessments, the 6834B handles power factor corrected devices efficiently with programmable phase switching and CE mark conformity.
Testwall can supply the used Keysight (Agilent) 6834B AC Power Source/Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6834B AC Power Source/Analyzer.
