Keysight (Agilent) 773D
| Attribute | Value |
|---|---|
| Frequency Range | 0.1 MHz to 18 GHz |
| Connector Type | Waveguide to Coax Adapter |
| Waveguide Band | WR-62 (Ku-Band) |
| Operating Frequency Band | 12.4 GHz to 18 GHz |
| VSWR (Maximum) | 1.25 |
| Insertion Loss (Maximum) | 0.7 dB |
| Coaxial Connector Interface | Type-N (Female) |
| Power Handling (Average) | 1 W (Continuous) |
| Operating Temperature Range | -54°C to +100°C |
| Impedance | 50 Ohm |
Keysight Technologies 773D Options:
- 773D - 001 - All connectors Type-N (F)
| Model | 773D |
|---|

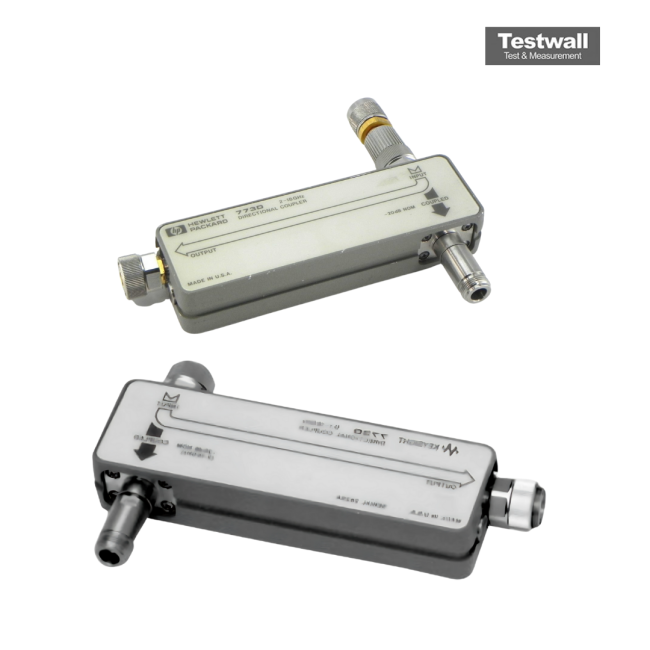

The Keysight (Agilent) 773D directional coupler offers excellent RF performance for broadband swept measurements from 2 to 18 GHz. It features a nominal coupling of 20 dB and a maximum coupling variation of ±1.0 dB. Directionality is rated at 30 dB up to 12.4 GHz and 27 dB up to 18 GHz, ensuring precise measurements.
Ideal for leveling broadband sources, particularly when paired with the Keysight 8474B detector, the 773D ensures consistent, accurate test results across high-frequency applications.
Testwall can supply the used Keysight (Agilent) 773D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 773D.
