Keysight (Agilent)

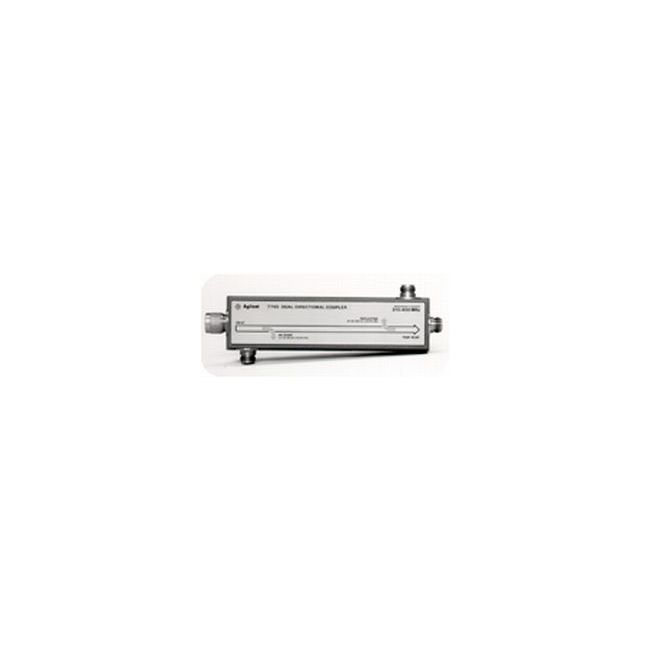

Keysight (Agilent) 774D
Dual Directional Coupler
2.0 GHz to 4.0 GHz Frequency Range
0.5 dB typical Insertion Loss
1.25:1 maximum VSWR
Type-N Female Connector Type
1 W average Power Handling
| Attribute | Value |
|---|---|
| Frequency Range | 2.0 GHz to 4.0 GHz |
| Insertion Loss | 0.5 dB typical |
| VSWR | 1.25:1 maximum |
| Connector Type | Type-N Female |
| Power Handling | 1 W average |
| Isolation | 20 dB minimum |
| Impedance | 50 Ohms |
| Operating Temperature | 0°C to +55°C |
| Device Type | Directional Coupler / Power Splitter |
| Coupling Factor | 3 dB |
| Model | 774D |
|---|
The Keysight (Agilent) 774D is a dual-directional coupler for 215 MHz to 450 MHz, offering high directivity (≥40 dB), 20 dB nominal coupling, ±1 dB variation, and 0.30 dB insertion loss. SWR max is 1.15.
It is ideal for reflectometer applications and precise swept measurements with compact size (230.2 x 79.4 x 44.5 mm).
Testwall can supply the used Keysight (Agilent) 774D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 774D.
