Keysight (Agilent) 85021B
| Attribute | Value |
|---|---|
| Frequency Range | 50 MHz to 26.5 GHz |
| Connector Type | Type-N (50 Ohm) |
| Directivity | ≥ 36 dB (50 MHz to 2 GHz), ≥ 28 dB (2 GHz to 26.5 GHz) |
| Source Match | ≥ 36 dB (50 MHz to 2 GHz), ≥ 28 dB (2 GHz to 26.5 GHz) |
| Load Match | ≥ 36 dB (50 MHz to 2 GHz), ≥ 28 dB (2 GHz to 26.5 GHz) |
| Reflection Tracking | ± 0.5 dB (50 MHz to 2 GHz), ± 0.7 dB (2 GHz to 26.5 GHz) |
| Impedance | 50 Ohm |
| Operating Temperature | 0°C to 55°C |
| Calibration Standard | Electronic Calibration (ECal) Module |
| Compatible Instruments | Keysight/Agilent Vector Network Analyzers (VNA) |
| Model | 85021B |
|---|

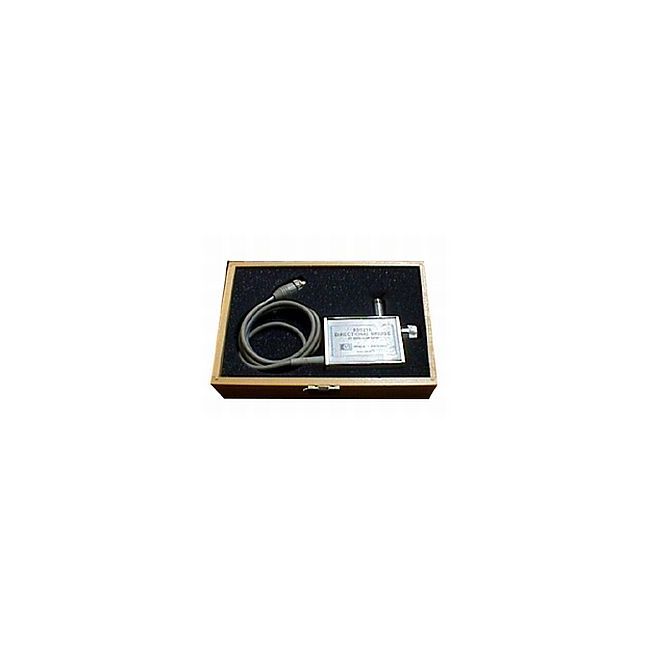

The Keysight (Agilent) 85021B Directional Bridge supports scalar network analyzers like the 8757A, 8756A, and 8755C, featuring exceptional directivity and compact construction. It measures return loss via a zero-bias Schottky diode detector across a wide frequency range of 10 MHz to 26.5 GHz, using APC-3.5 Female input and output connectors at 50 ohms impedance.
Ideal for precise RF measurements, the 85021B ensures robust performance with directivity ratings up to 40 dB and a maximum input power of +23 dBm, packed in a 15 x 110 x 96 mm design.
Testwall can supply the used Keysight (Agilent) 85021B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85021B.
