Keysight (Agilent) 776D
| Attribute | Value |
|---|---|
| Frequency Range | 2.0 GHz to 4.0 GHz |
| Connector Type | Type-N Female |
| Impedance | 50 Ohm |
| Power Handling (Average) | 2 W |
| Insertion Loss | 0.5 dB Maximum |
| VSWR | 1.25:1 Maximum |
| Isolation | 60 dB Minimum |
| Device Type | Coaxial Switch |
| Operating Temperature | 0°C to +55°C |
| Actuation Voltage | 28 VDC |
| Model | 776D |
|---|

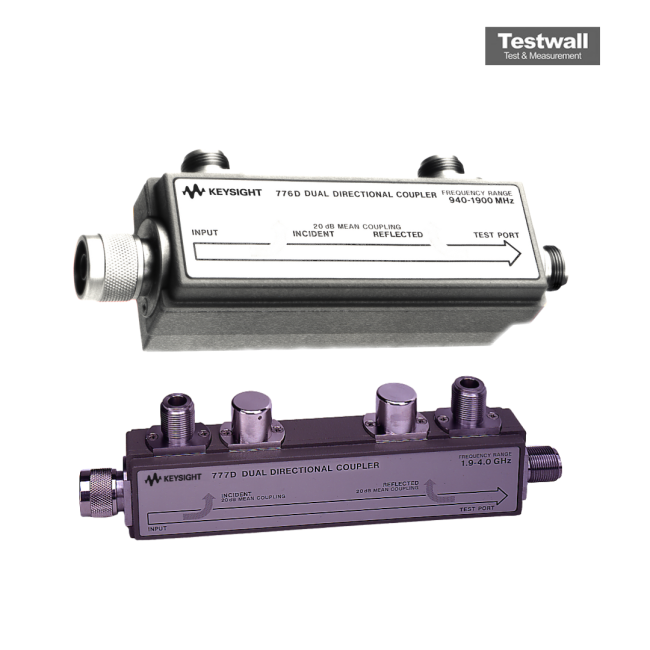

The Keysight (Agilent) 776D is a dual-directional coupler optimized for swept measurements from 0.94 to 1.90 GHz. It offers high directivity and exceptional mean coupling accuracy of ±0.5 dB, making it ideal for precise reflectometer applications. Auxiliary arms ensure consistent tracking, supporting sweep oscillator-driven systems.
With its precise performance and robust design, the 776D is particularly suited for demanding RF measurement tasks involving signal reflection and transmission analysis.
Testwall can supply the used Keysight (Agilent) 776D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 776D.
