Keysight (Agilent) 796D
Directional Coupler 0.96-2.11GHz 20 dB.
300 kHz to 1 GHz Frequency Range
50 Ohm Impedance
Type-N Female Connector Type
1.15:1 maximum VSWR
2 W average Power Rating
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 1 GHz |
| Impedance | 50 Ohm |
| Connector Type | Type-N Female |
| VSWR | 1.15:1 maximum |
| Power Rating | 2 W average |
| Insertion Loss | 0.3 dB maximum |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +75°C |
| Attenuation | 6 dB |
| Compatible Instrument Series | Keysight 8590 Series Spectrum Analyzers |
| Model | 796D |
|---|

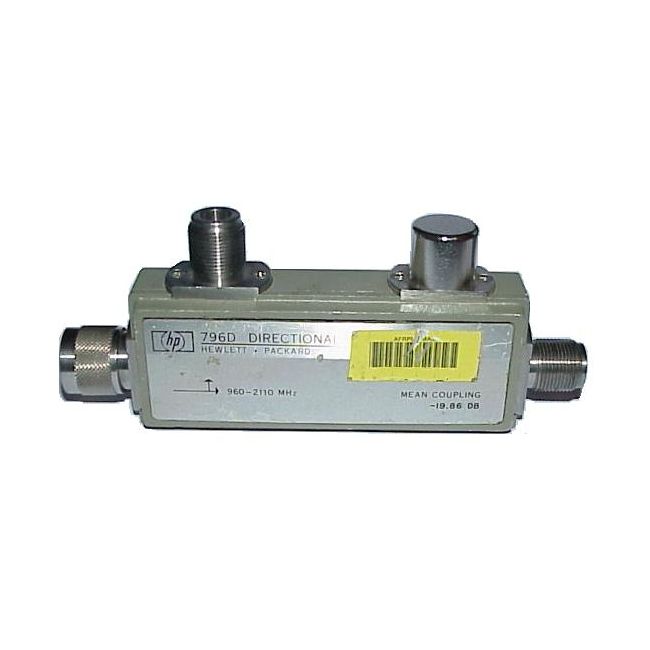

The Keysight (Agilent) 796D is a coaxial directional coupler with high directivity, operating from 0.96 to 2.11 GHz. It offers a stable 20 dB nominal coupling and ultra-flat frequency response for precision measurements.
Ideal for accurate signal sampling and monitoring, it's built for both laboratory and field testing environments requiring minimal measurement errors.
Testwall can supply the used Keysight (Agilent) 796D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 796D.
