Keysight (Agilent)
Keysight (Agilent) 8091A
DC to 1.3 GHz Frequency Range
50 Ohm Impedance
BNC Connector Type
RF Practice Board / Training Board Device Type
Designed for use with network analyzers for training and educational purposes Application
| Attribute | Value |
|---|---|
| Frequency Range | DC to 1.3 GHz |
| Impedance | 50 Ohm |
| Connector Type | BNC |
| Device Type | RF Practice Board / Training Board |
| Application | Designed for use with network analyzers for training and educational purposes |
| Compatible Instruments | Keysight/Agilent Network Analyzers |
| Board Components | Includes various passive RF components such as resistors, capacitors, and inductors for measurement practice |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Country of Origin | United States |
| Model | 8091A |
|---|

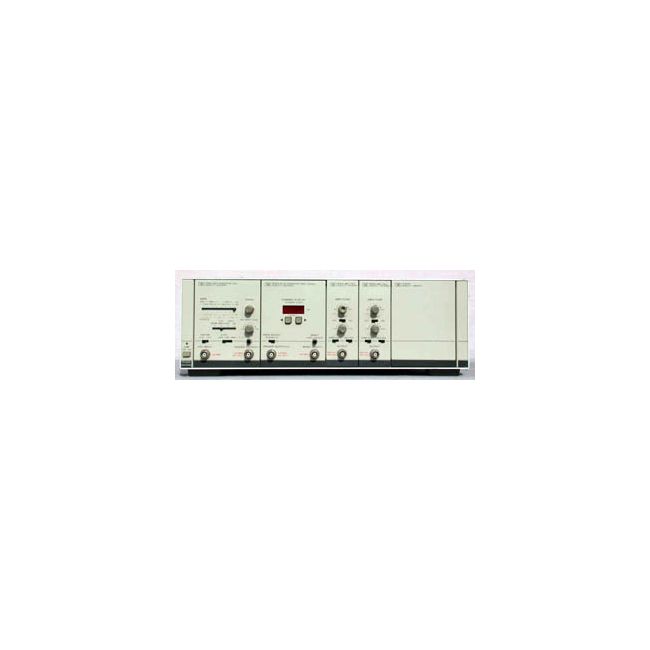

The Keysight (Agilent) 8091A is a high-speed 1 GHz Rate Generator Module, vital for digital testing within the 8080A Pulse Generator Mainframe. It ensures accurate signal generation for R&D environments handling subnanosecond integrated circuits and fiber optics.
This module supports simultaneous 1 GHz clock and NRZ data output, making it perfect for testing high-speed memory systems and 64-bit data streams.
Testwall can supply the used Keysight Technologies 8091A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight Technologies 8091A.
