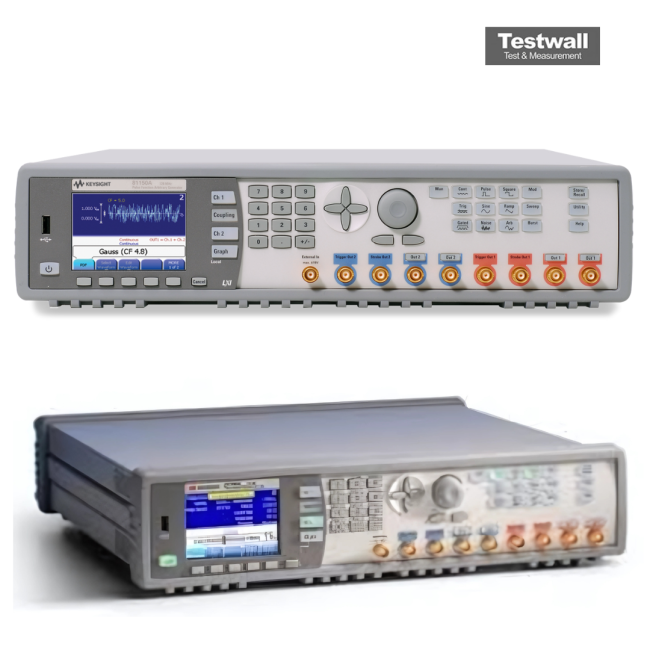

Keysight (Agilent) 81150A
| Attribute | Value |
|---|---|
| Channels | 1 or 2 channels |
| Sample Rate | 2 GSa/s |
| Modulation | AM, FM, ΦM, PWM, FSK |
| Vertical Resolution | 14 bit |
| Arbitrary Memory | up to 512 kpts per channel |
| Frequency Range | 1 µHz to 240 MHz (sine); 1 µHz to 120 MHz (pulse, square) |
| Amplitude | 50 mVpp to 5 Vpp into 50 Ω (100 mVpp to 10 Vpp with high-voltage amplifier) |
| Waveforms | sine, square, ramp, triangle, pulse, noise, arbitrary |
| Rise/Fall Time | 2.5 ns to 1000 s (7.5 ns with high-voltage amplifier) |
| Harmonic Distortion | < -62 dBc up to 2 MHz at 1 Vpp |
| Jitter | 7 ps rms (typ.) |
| Output Impedance | 50 Ω or 5 Ω |
| Output Connector | BNC |
| Interfaces | GPIB, LAN (LXI), USB |
| Dimensions | 439 × 108 × 456 mm |
| Weight | 8 kg |
The Keysight (Agilent) 81150A is a high-precision pulse function arbitrary noise generator offering pulse generation from 1µHz to 120 MHz with variable rise/fall times, sine output up to 240 MHz, and 14-bit, 2 GSa/s arbitrary waveform capabilities. It features 512k samples per channel, long signal repetition times up to 26 days, and modulation types including FM, AM, PW, PWM, and FSK up to 10 MHz. Optional bit-shaped pattern generation enables up to 120 Mbit/s with ideal or distorted patterns.
Designed for reproducible testing and in-depth problem identification, the 81150A supports noise with selectable crest factors, differential outputs, and waveform creation/editing with 33503A software for flexibility in testing environments.
Testwall can supply the used Keysight (Agilent) 81150A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 81150A.
