Keysight (Agilent)

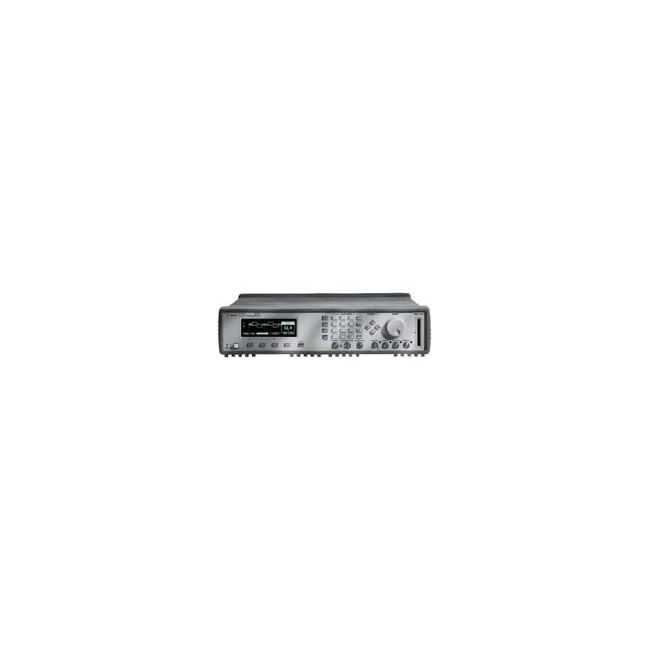

Keysight (Agilent) 81132A
660.00 Mbps Pattern Generator
Up to 3.35 GHz Frequency Range
1 Channel Number of Channels
Up to 3.35 Gbit/s Data Rate
0.25 V to 2.0 V (into 50 Ω) Output Voltage Range
Less than 120 ps (typical) Rise/Fall Time
| Attribute | Value |
|---|---|
| Frequency Range | Up to 3.35 GHz |
| Number of Channels | 1 Channel |
| Data Rate | Up to 3.35 Gbit/s |
| Output Voltage Range | 0.25 V to 2.0 V (into 50 Ω) |
| Rise/Fall Time | Less than 120 ps (typical) |
| Timing Resolution | 1 ps |
| Pattern Length | Up to 2^32 - 1 bits (PRBS) |
| Output Impedance | 50 Ω |
| Operating Temperature | 0 °C to 55 °C |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Model | 81132A |
|---|
The Keysight (Agilent) 81132A is a 660 MHz output module designed for use with the 81130A Pulse Data Generator, delivering 2.5 Vpp into 50 Ω with a fixed 500 ps transition time for ultra-fast digital signal applications.
Ideal for testing high-speed digital components, it features exceptional delay and width accuracy for precision signal generation in demanding environments.
Testwall can supply the used Keysight (Agilent) 81132A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 81132A.
