Keysight (Agilent) 81567A
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1640 nm |
| Attenuation Range | 0 to 60 dB |
| Attenuation Resolution | 0.001 dB |
| Insertion Loss | < 3 dB |
| Polarization Dependent Loss (PDL) | < 0.1 dB |
| Return Loss | > 40 dB |
| Power Handling | 300 mW (24.8 dBm) |
| Connector Type | FC/PC |
| Compatible Mainframe | Keysight 8164A/B, 8166A/B Lightwave Measurement Systems |
| Module Type | Variable Optical Attenuator (VOA) Module |
| Model | 81567A |
|---|

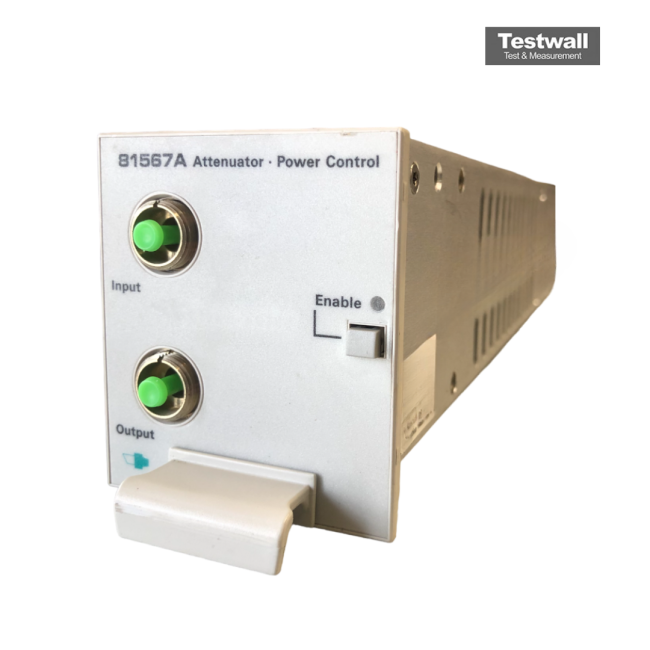

The Keysight (Agilent) 81567A is an advanced optical attenuator with power control functionality, operating across a wavelength range of 1250-1650 nm. It supports attenuation from 0 to 60 dB with a 0.001 dB resolution, using an integrated photodiode and monitor tap for automatic feedback. With repeatability of ±0.01 dB and typical insertion loss of 2.2 dB, it ensures accurate, reliable signal modulation.
This unit uses 9/125 µm SMF28 fiber and angled connectors, with a max input power of +22 dBm. After calibration, it achieves precise absolute power level settings.
Testwall can supply the used Keysight (Agilent) 81567A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 81567A.
