Keysight (Agilent) 8164B
| Attribute | Value |
|---|---|
| Wavelength Range | 600 nm to 1700 nm (module dependent) |
| Number of Slots | Up to 4 slots for interchangeable modules |
| Output Power Range | Up to +13 dBm (module dependent) |
| Power Measurement Accuracy | ±0.01 dB (typical, module dependent) |
| Tuning Resolution | 0.1 pm minimum (tunable laser module dependent) |
| Interface | GPIB, USB, and LAN (LXI compliant) |
| Display | Built-in color LCD touchscreen display |
| Power Supply | 100–240 VAC, 50/60 Hz, auto-ranging |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Dimensions (W x H x D) | 426 mm x 221 mm x 456 mm (16.8 in x 8.7 in x 18.0 in) |
Keysight Technologies 8164B Options:
- 8164B - 908 - Rack mount kit
- 8164B - 08163-44101 - Filler panel for empty slots (compact slots only)
| Model | 8164B |
|---|

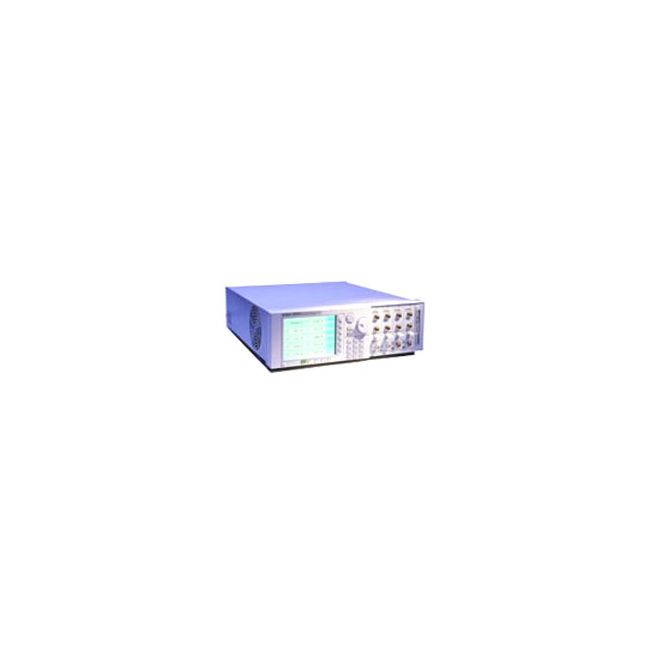

The Keysight (Agilent) 8164B Lightwave Measurement System features a modular mainframe designed for high-precision optical testing. It accommodates one tunable laser source and up to four additional modules such as power, return loss, or fixed laser sources. Integrated applications include Passive Component Test, Stability, and Logging, with extensive triggering and remote control via LAN and GPIB interfaces.
Perfect for fast and accurate optical applications, the 8164B supports compact and tunable modules in a flexible test environment with enhanced control and data logging capabilities.
Testwall can supply the used Keysight (Agilent) 8164B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8164B.
