Keysight (Agilent) 8168C
| Attribute | Value |
|---|---|
| Wavelength Range | 1450 nm to 1590 nm |
| Wavelength Accuracy | ±0.001 nm |
| Wavelength Resolution | 0.0001 nm |
| Output Power Range | -7 dBm to +7 dBm |
| Power Accuracy | ±0.5 dB |
| Side Mode Suppression Ratio (SMSR) | >50 dB |
| Linewidth | <100 kHz |
| Output Interface | FC/APC Connector |
| Modulation Capability | Internal and External Modulation Supported |
| Interface/Connectivity | GPIB and RS-232 |
| Model | 8168C |
|---|

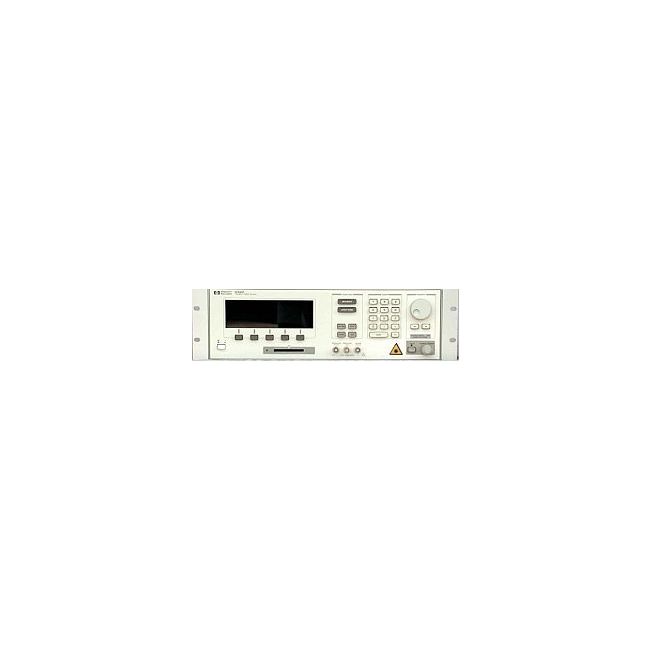

The Keysight (Agilent) 8168C Tunable Laser Source is engineered for high-precision optical testing, covering a wavelength range from 1470nm to 1580nm with exceptional accuracy of ±0.1nm. It features a side mode filter to guarantee a pure single-mode output at each wavelength point. Users benefit from independent power and wavelength control, and 0.001nm resolution for precise tuning.
This unit is ideal for characterizing optical amplifiers and components, ensuring stable and flat power output across all wavelengths during scans.
Testwall can supply the used Keysight (Agilent) 8168C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8168C.
