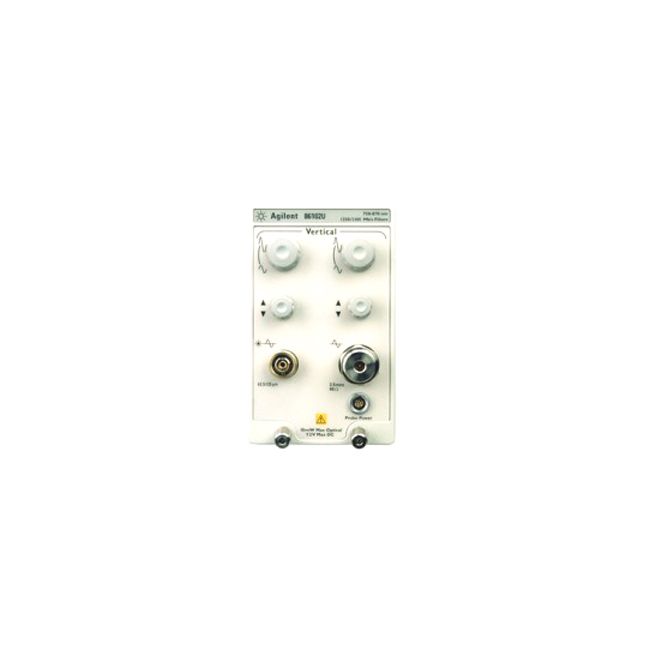

Keysight (Agilent) 86102U
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Rise Time | 17.5 ps |
| Number of Channels | 2 Electrical Channels |
| Input Connector Type | 2.92 mm (K-connector) |
| Timebase Range | 10 ps/div to 2 s/div |
| Vertical Sensitivity | 1 mV/div to 200 mV/div |
| Maximum Input Voltage | ±2 V peak |
| Sampling Rate | Up to 1 TSa/s (equivalent time sampling) |
| Compatible Mainframe | Keysight 86100 Series Digital Communications Analyzer (DCA) |
| Module Type | Dual-Channel Electrical Plug-In Module |
Keysight Technologies 86102U Options:
- 86102U - 201 - 1.25, 2.488 Gb/s filtered data rates
- 86102U - 202 - 2.488, 3.125 Gb/s filtered data rates
- 86102U - 203 - 3.125, 10.3125 Gb/s filtered data rates
| Model | 86102U |
|---|
The Keysight (Agilent) 86102U module supports high-speed optical testing with a 15 GHz amplified optical channel, ideal for 850 nm transmitters at 2.5 Gb/s and above. Built-in filters ensure compliance at 1250/2488 Mb/s and 2488/3125 Mb/s data rates. It operates over 750–860 nm wavelength and supports multiple reference receiver rates, including up to 10.3125 Gb/s.
The 20 GHz electrical channel features a 3.5 mm male input, with a max ±2 Vdc input and rms noise levels of 0.25 mV (12.4 GHz BW) and 0.5 mV (20 GHz BW). Compatible with 86100A/B/C Infiniium DCA/DCA-J Mainframes.
Testwall can supply the used Keysight (Agilent) 86102U, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86102U.
