Keysight (Agilent)

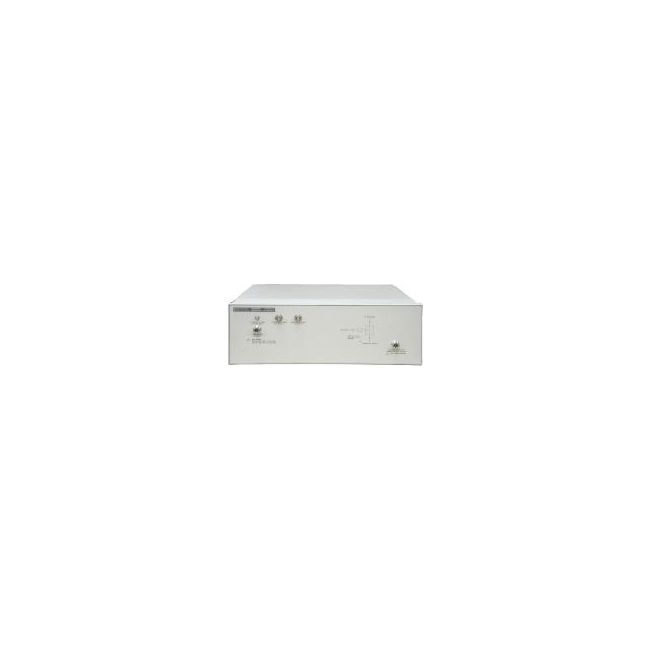

Keysight (Agilent) 83220E
DCS / PCS MS Test Set
1 GHz to 20 GHz Frequency Range
-10 dBm to +10 dBm Output Power Range
Up to 1 GHz Modulation Bandwidth
Compatible with Keysight 8360 Series Synthesized Sweepers Interface Compatibility
Microwave Up-Converter / Frequency Extension Module Signal Type
| Attribute | Value |
|---|---|
| Frequency Range | 1 GHz to 20 GHz |
| Output Power Range | -10 dBm to +10 dBm |
| Modulation Bandwidth | Up to 1 GHz |
| Interface Compatibility | Compatible with Keysight 8360 Series Synthesized Sweepers |
| Signal Type | Microwave Up-Converter / Frequency Extension Module |
| Input Frequency Range | 2 GHz to 6.67 GHz (from source) |
| Harmonic Suppression | Greater than 20 dBc |
| Power Supply Requirement | Powered via host synthesizer (no external power supply required) |
| Connector Type | 2.4 mm RF connectors |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies 83220E Options:
- 83220E - 022 - Bundle discount when ordered with 8922S/M test set
- 83220E - 0B1 - Provides one additional user's guide, part number 83220-90027 (83220A/E test set)
- 83220E - AX4 - Rack mount flange kit (5062-4071)
| Model | 83220E |
|---|
The Keysight (Agilent) 83220E expands the HP 8922 series, enabling comprehensive testing for DCS 1800 and PCS 1900 mobile equipment. It retains all features of the HP 8922 while offering enhanced capability and efficiency, making it a cost-effective mobile testing solution.
Designed for DCS 1800 and PCS 1900 test scenarios, it ensures complete compatibility with mobile test environments using HP 8922 systems.
Testwall can supply the used Keysight (Agilent) 83220E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83220E.
