Keysight (Agilent) 83485A
| Attribute | Value |
|---|---|
| Bandwidth | 30 GHz Electrical / 20 GHz Optical |
| Wavelength Range | 750 nm to 1650 nm |
| Input Connector Type | Single-mode and multimode fiber optic input |
| Electrical Channel Input Impedance | 50 Ohm |
| Compatible Instrument | Keysight 83480A Digital Communications Analyzer |
| Module Type | Dual Channel Electrical/Optical Plug-in Module |
| Maximum Input Voltage | ±2 V |
| Optical Input Power Range | -20 dBm to +3 dBm |
| Rise Time (Electrical) | Less than 14 ps |
| Operating Temperature Range | 0°C to 55°C |
| Model | 83485A |
|---|

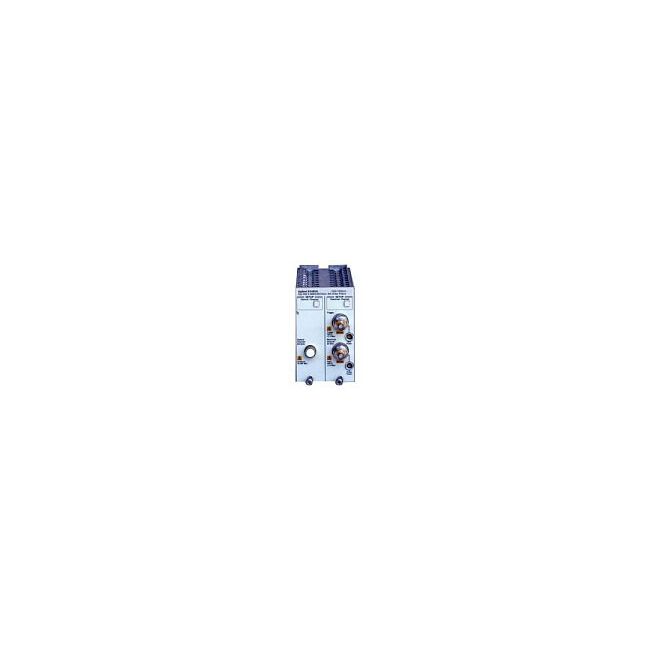

The Keysight (Agilent) 83485A is a plug-in module featuring a 20 GHz optical and a 20 GHz electrical channel, ideal for high-speed signal analysis. It supports 9/125 µm fibers within a wavelength range of 1000–1600 nm, and includes a reference receiver for data rates up to 9.953 Gb/s. The electrical channel uses a 3.5 mm male input, ensuring precise measurement capabilities. Compatible with 83480A and 86100A/B/C mainframes.
Designed for advanced testing applications, the module supports critical telecom and datacom standards. It enables accurate testing across wide bandwidths using Keysight mainframes.
Testwall can supply the used Keysight (Agilent) 83485A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83485A.
