Keysight (Agilent)

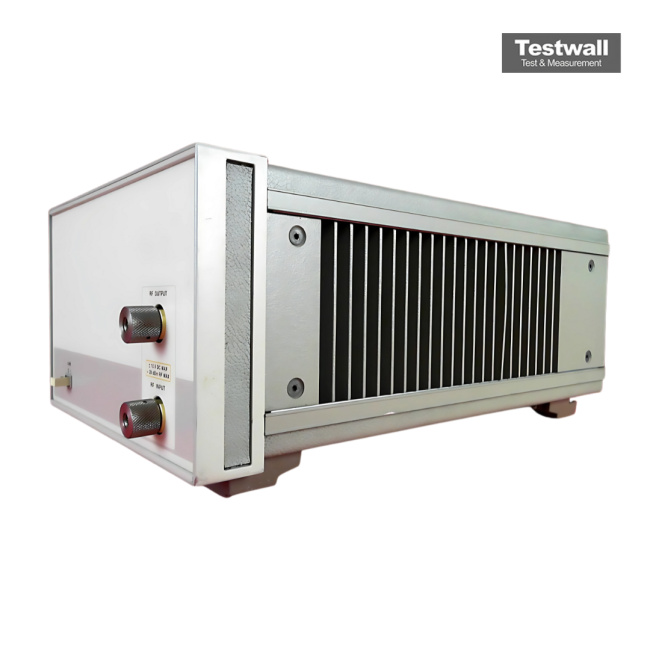

Keysight (Agilent) 8348A
2-26.5GHz +25dBm RF Amplifier
2 GHz to 20 GHz Frequency Range
25 dB minimum Gain
+17 dBm typical Output Power at 1 dB Compression
8 dB typical Noise Figure
50 Ohms Input/Output Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 20 GHz |
| Gain | 25 dB minimum |
| Output Power at 1 dB Compression | +17 dBm typical |
| Noise Figure | 8 dB typical |
| Input/Output Impedance | 50 Ohms |
| Connector Type | SMA (female) |
| Power Supply Voltage | +15 VDC |
| Current Consumption | 350 mA maximum |
| Operating Temperature Range | 0°C to +55°C |
| Device Type | Microwave Amplifier |
Keysight Technologies 8348A Options:
- 8348A - 001 - Rear panel RF input/output
- 8348A - 002 - Rear panel RF input and front panel RF output
- 8348A - 910 - Extra operating manual
- 8348A - 1BN - MIL-STD 45662A Certificate of Calibration
- 8348A - 1BP - MIL-STD 45662A Certificate of Calibration with Data
| Model | 8348A |
|---|
The Keysight (Agilent) 8348A RF Amplifier delivers broadband gain to compensate for systematic RF losses across test systems, with high-power output suitable for driving millimeter-wave source modules and enhancing dynamic range in network analyzer measurements. Optimized for precision signal amplification, it supports high sweep speeds in low-level measurement scenarios and offers flexible I/O configurations, including rear or mixed-panel connections.
This amplifier is an ideal fit for advanced RF setups demanding stable and high-performance signal boosting.
Testwall can supply the used Keysight (Agilent) 8348A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8348A.
