Amplifier Research 500T2Z5G7Z5
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz – 500 MHz |
| Output Power | 500 Watts CW Minimum |
| Gain | ≥ 55 dB |
| Input Power for Rated Output | ≤ 0 dBm |
| Input Impedance | 50 Ohms |
| Output Impedance | 50 Ohms |
| Harmonics | -10 dBc or less |
| Power Requirements | 208/240 VAC, Single Phase, 50/60 Hz |
| Cooling Method | Forced Air Cooling |
| RF Connector Type | Type N Female |
Amplifier Research 500T2Z5G7Z5 Options:
- 500T2Z5G7Z5 - M1 - E1C: Cabinet without outer enclosure, 48.3 x 22.2 (5U) x 66.1 cm, 19 x 8.75 (5U) x 27 in. Subtract approximately 14 kg, 30 lbs.
- 500T2Z5G7Z5 - M2 - E3H: Front pull handles installed.
- 500T2Z5G7Z5 - M3 - E1C & E3H: Cabinet without outer enclosure plus front pull handles installed.
- 500T2Z5G7Z5 - M4 - E1C & E2S: Cabinet without outer enclosure plus slides installed (add approximately 2 kg, 5 lbs).
- 500T2Z5G7Z5 - M5 - E1C & E2S & E3H: Cabinet without outer enclosure, slides, and front pull handles installed.
- 500T2Z5G7Z5 - M6 - P1: 190-260 VAC single phase 50/60 Hz, 3.5 KVA maximum alternate primary power.
- 500T2Z5G7Z5 - M7 - E1C & P1: Cabinet without outer enclosure plus single phase alternate primary power.
- 500T2Z5G7Z5 - M8 - E1C & E2S & E3H & P1: Cabinet without outer enclosure, slides, front pull handles, and single phase alternate primary power.
- 500T2Z5G7Z5 - M9 - S1R: Reflected sample port on rear panel, type N female connector. Forward and reflected sample port calibration data supplied on disk in Excel format at 51 points.
- 500T2Z5G7Z5 - M10 - P1 & S1R: Single phase alternate primary power plus reflected sample port on rear panel.
- 500T2Z5G7Z5 - M11 - E1C & P1 & S1R: Cabinet without outer enclosure, single phase alternate primary power, and reflected sample port.
- 500T2Z5G7Z5 - M12 - P1 & S2V: Single phase alternate primary power plus video pulse capability (blanking, PRF up to 100 kHz, RF rise/fall 30 ns max).
- 500T2Z5G7Z5 - M13 - E1C & S3P & S6F: Cabinet without outer enclosure, power minimum 350 watts from 7.5–8.0 GHz, and external filter assembly with TWTA input/filtered output/coupled ports on front of subassembly.
- 500T2Z5G7Z5 - M14 - E1C & E2S & S5F: Cabinet without outer enclosure, slides, and external filter assembly with connectors on rear panel.
- 500T2Z5G7Z5 - M15 - S3P: Power minimum 350 watts from 7.5 GHz to 8.0 GHz (400 watts typical).
- 500T2Z5G7Z5 - M16 - E1C & E2S & E3H & P1 & S1R: Cabinet without outer enclosure, slides, front pull handles, single phase alternate primary power, and reflected sample port.
- 500T2Z5G7Z5 - M17 - E1C & E3H & P1 & S7C: Cabinet without outer enclosure, front pull handles, single phase alternate primary power, and RF output on rear panel with all other connectors on front panel (interlock BNC, RF output sample port 60 dB coupling factor).
- 500T2Z5G7Z5 - M18 - E3H & S2V: Front pull handles installed plus video pulse capability (blanking, PRF up to 100 kHz, RF rise/fall 30 ns max).
| Model | 500T2Z5G7Z5 |
|---|

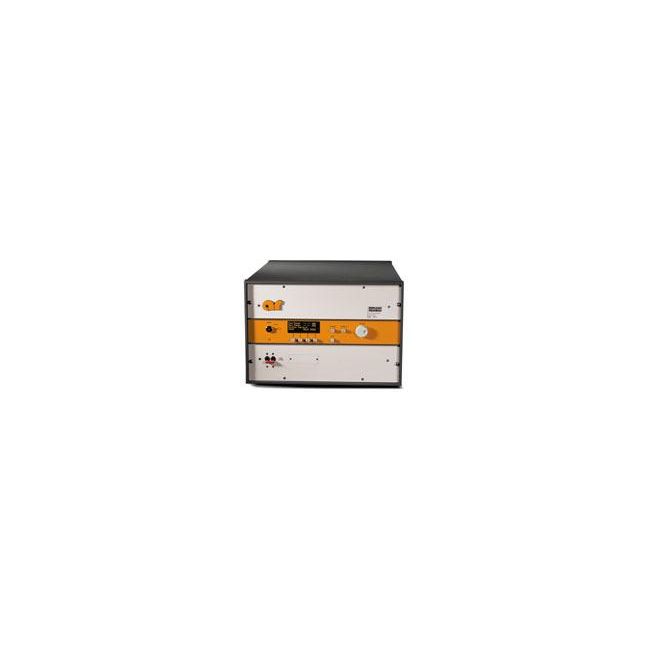

The Amplifier Research 500T2z5G7z5 is a self-contained, forced-air cooled broadband traveling wave tube (TWT) amplifier, offering 500W minimum output across 2.5–7.5 GHz. It features 57 dB minimum gain, 35 dB continuous gain adjustment, VSWR protection, and full support for AM, FM, and pulse modulation. Designed with a modular power supply, digital display, and IEEE-488 (GPIB) interface, it ensures reliable performance in demanding test environments.
Ideal for EMC RF susceptibility testing, industrial research, university R&D, and service applications, the 500T2z5G7z5 amplifier delivers high power output with robust system protection and accurate monitoring.
Testwall can supply the used Amplifier Research 500T2z5G7z5, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 500T2z5G7z5.
