Keysight (Agilent)
Keysight (Agilent) 83590A
RF Plug-In 2 - 20GHz
2 GHz to 6.5 GHz Frequency Range
-20 dBm to +13 dBm Output Power Range
1 Hz Frequency Resolution
-90 dBc/Hz at 10 kHz offset Spectral Purity (SSB Phase Noise)
10 ms to 100 s Sweep Time
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 6.5 GHz |
| Output Power Range | -20 dBm to +13 dBm |
| Frequency Resolution | 1 Hz |
| Spectral Purity (SSB Phase Noise) | -90 dBc/Hz at 10 kHz offset |
| Sweep Time | 10 ms to 100 s |
| Output Connector | Type-N Female, 50 Ohm |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation |
| Harmonic Suppression | -30 dBc typical |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies 83590A Options:
- 83590A - 002 - Extended attenuator option providing minimum settable power of -75 dBm, maximum leveled power of 5.0 mW full band, and power sweep calibrated range >12 dB
| Model | 83590A |
|---|

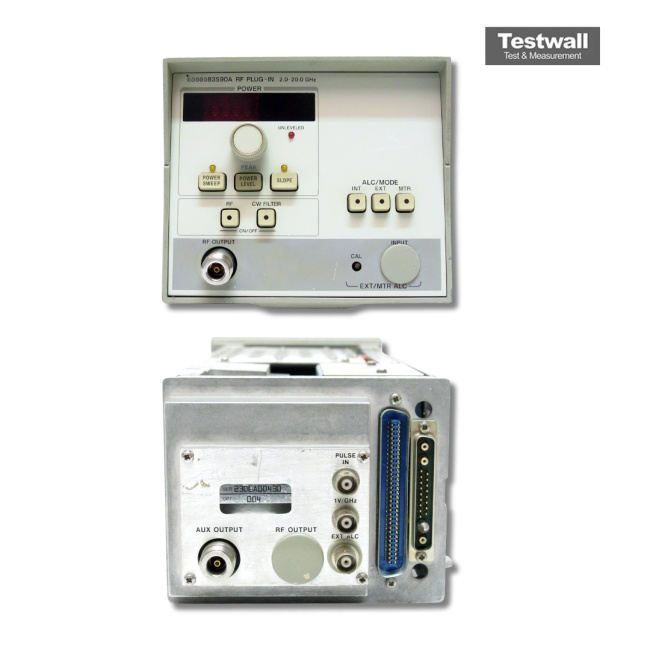

The Keysight (Agilent) 83590A RF plug-in delivers a 2 to 20 GHz broadband coaxial swept frequency source, designed specifically for the Keysight 8350B sweep oscillator mainframe.
Ideal for scalar network analysis and high-frequency signal down-conversion, it also functions as a standalone RF signal source.
Testwall can supply the used Keysight (Agilent) 83590A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83590A.
