Keysight (Agilent) 33520B
| Attribute | Value |
|---|---|
| Channels | 2 channels |
| Vertical Resolution | 16 bit |
| Rise/Fall Time | 8.4 ns (nom.) |
| Jitter | < 40 ps rms |
| Output Impedance | 50 Ω (nom.) |
| Frequency Range | 1 µHz to 30 MHz (sine, square, pulse); up to 200 kHz (ramp, triangle) |
| Amplitude | 1 mVpp to 10 Vpp into 50 Ω (2 mVpp to 20 Vpp open circuit) |
| Modulation | AM, FM, ΦM, FSK, BPSK, PWM, Sum |
| Waveforms | sine, square, ramp, triangle, pulse, noise, DC |
| Harmonic Distortion | THD < 0.04%, 20 Hz to 20 kHz (typ.) |
| Sweep Modes | linear, log, list (up to 128 frequencies) |
| Timebase Aging | ±1 ppm per year |
| Interfaces | GPIB, LAN (LXI), USB |
| Display | 4.3 in color TFT, 480 × 272 |
| Dimensions | 261.1 × 103.8 × 303.2 mm |
| Weight | 3.3 kg |

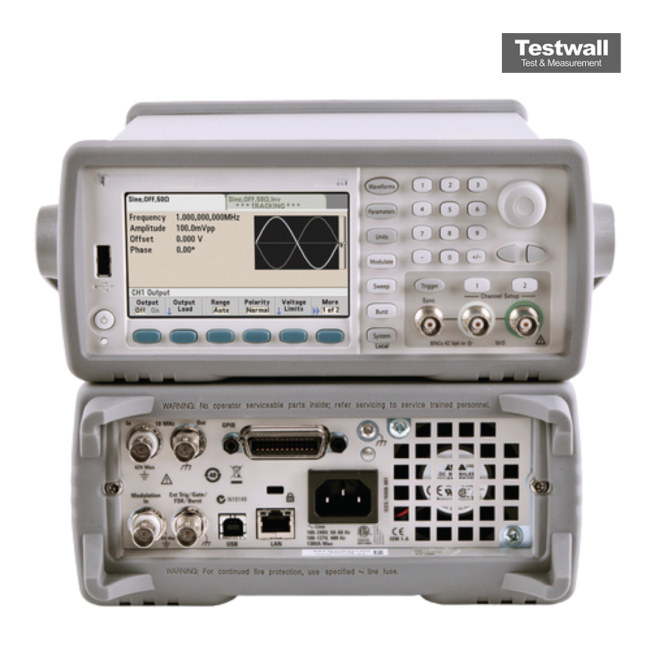

The Keysight (Agilent) 33520B is a 30 MHz, 2-channel waveform generator delivering advanced signal integrity with 250 MSa/s sampling rate and 16-bit resolution. This model ensures high precision and low jitter for complex signal simulations. Dual channels can operate independently or in sync, supporting AM, FM, PWM, and arbitrary waveform generation with deep memory.
It is ideal for applications requiring accurate and flexible waveform creation, such as communications, electronics testing, and embedded system validation. USB, LAN, and GPIB connectivity ensure easy integration into test setups.
Testwall can supply the used Keysight (Agilent) 33520B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 33520B.
Options and configurations
- Timebase Aging: ±1 ppm per year (±0.1 ppm with Opt. OCX)
