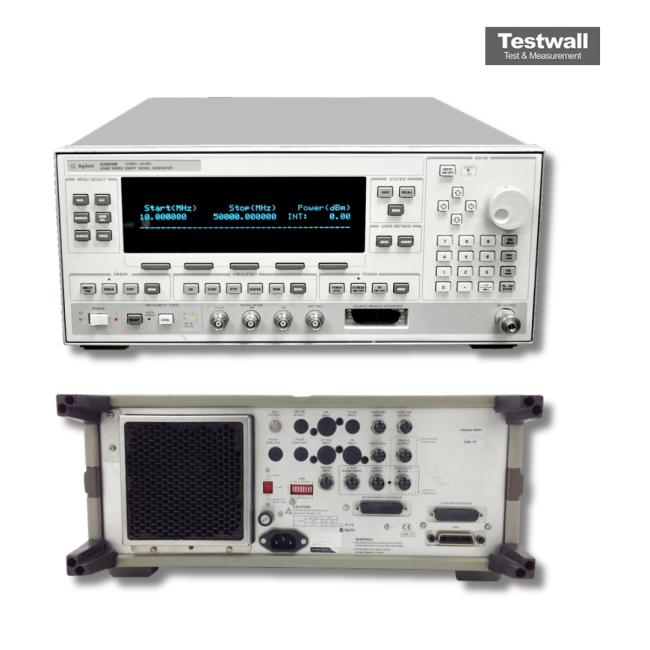

Keysight (Agilent) 83650B
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 50 GHz |
| Frequency Resolution | 1 kHz |
| Interfaces | GPIB |
| Dimensions | 425 × 178 × 648 mm |
| Weight | 27 kg |
| Output Power | -20 dBm to +10 dBm (+5 dBm to 40 GHz, +2.5 dBm to 50 GHz) |
| SSB Phase Noise | -80 dBc/Hz at 10 GHz, 10 kHz offset |
| Modulation | AM, FM, pulse |
| Level Accuracy | ±0.7 dB at 2 to 20 GHz, > -10 dBm (spec.) |
| Non-Harmonics | -60 dBc to 20 GHz, -54 dBc to 40 GHz, -52 dBc to 50 GHz |
| Switching Speed | 15 ms + 5 ms per GHz step (max.) |
| Modulation Bandwidth | AM DC to 100 kHz; FM up to 8 MHz rate, ±8 MHz locked, ±75 MHz unlocked |
| Sweep Modes | step sweep, list mode, ramp sweep, power sweep (801 points) |
| Timebase Aging | 10 MHz, 5 × 10⁻¹⁰ per day, 1 × 10⁻⁷ per year |
| RF Output Connector | 2.4 mm male front panel |
Keysight (Agilent) 83650B Options:
Options available for the Keysight (Agilent) 8362x/8363x/8364x/8365x series synthesized swept-signal generators. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- 83650B - 001 - Step attenuator
- 83650B - 002 - Internal AM/FM/pulse/scan modulation generator
- 83650B - 004 - RF output moved to rear panel
- 83650B - 006 - Fast pulse modulation
- 83650B - 008 - 1 Hz frequency resolution
- 83650B - 1E5 - High-stability timebase
- 83650B - 1CM - Rack mount kit
- 83650B - 1CN - Front handle kit
- 83650B - 1CP - Rack mount kit with handles
The Keysight (Agilent) 83650B Synthesized Sweeper provides 1 Hz frequency resolution with Option 008 and exceptional SSB phase noise performance of -80 dBc at 10 GHz. Covering 10 MHz to 50 GHz with indirect synthesis, it ensures harmonics remain -50 dBc below carrier up to 26.5 GHz, and -40 dBc beyond. Featuring +10 dBm output power and modulation capabilities, it's ideal for precision RF applications.
Ideal for demanding analog sweep applications, the 83650B includes pulse, amplitude, and frequency modulation options, with step attenuator output as low as -110 dBm.
Testwall can supply the used Keysight (Agilent) 83650B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83650B.
Options and configurations
- Frequency Resolution: 1 kHz (1 Hz with Opt. 008)
- Output Power: -20 dBm (-110 dBm with Opt. 001) to +10 dBm (+5 dBm to 40 GHz, +2.5 dBm to 50 GHz)
- Modulation: AM, FM, pulse (on/off 80 dB, 25 ns rise/fall; 10 ns with Opt. 006)
- RF Output Connector: 2.4 mm male front panel (rear panel with Opt. 004)
