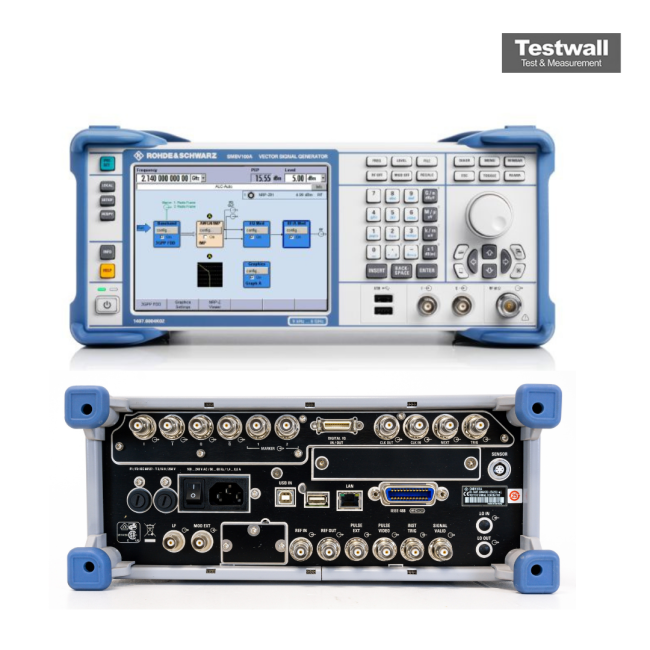

Rohde & Schwarz SMBV100A
Vector Signal Generator
| Attribute | Value |
|---|---|
| Frequency Resolution | 0.001 Hz |
| Harmonics | < -30 dBc (level ≤ 8 dBm) |
| Switching Speed | < 1.5 ms (CW), < 3 ms (I/Q) |
| RF Output Connector | Type-N female, front panel |
| Interfaces | GPIB, LAN, USB, RS-232 |
| Frequency Range | 9 kHz to 3.2 or 6 GHz |
| Output Power | -120 to +18 dBm (PEP, spec.); setting range -145 to +30 dBm |
| SSB Phase Noise | < -122 dBc/Hz at 1 GHz, 20 kHz offset (-128 typ.) |
| Modulation | AM, FM, ΦM, pulse, I/Q |
| Level Accuracy | < 0.5 dB (200 kHz to 3 GHz), < 0.9 dB (> 3 GHz) |
| Non-Harmonics | < -70 dBc (≤ 1.5 GHz), < -64 dBc (1.5 to 3 GHz), < -58 dBc (> 3 GHz) |
| Modulation Bandwidth | 120 MHz (depending on configuration) |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 1 × 10⁻⁶ per year (standard) |
| Dimensions | 344 × 155 × 368 mm |
| Weight | 7.9 kg |
Available configurations
| Model | Frequency range | Configuration |
| SMBV100A-B103 | 9 kHz to 3.2 GHz | Vector signal generator |
| SMBV100A-B106 | 9 kHz to 6 GHz | Vector signal generator |
The Rohde & Schwarz SMBV100A is a versatile vector signal generator offering frequency ranges from 9 kHz to 3.2 GHz or 6 GHz and up to 120 MHz RF signal bandwidth. It features internal signal generation, support for digital standards like WiMAX and LTE, and real-time signal creation with optional baseband coders.
Ideal for development and production, the SMBV100A is scalable, service-friendly, and designed for intuitive use, providing digital modulation signals with precision and efficiency.
Testwall can supply the used Rohde & Schwarz SMBV100A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMBV100A.
Options and configurations
- Frequency Range: 9 kHz to 3.2 or 6 GHz (Opt. B103/B106)
- Modulation: AM, FM, ΦM, pulse (Opt. K22), I/Q
- Modulation Bandwidth: 120 MHz (Opt. B10/B10F), 160 MHz (Opt. K522), 60 MHz (Opt. B51)
- Timebase Aging: 1 × 10⁻⁶ per year (standard), 1 × 10⁻⁷ per year (Opt. B1), 3 × 10⁻⁸ per year (Opt. B1H)
